Electronic Products

Sensing. Control.
Protection. Precision.

Our electronic systems range delivers the sensing intelligence, operator interface, and system protection that modern locomotive operations demand. From wheel speed measurement at 0.1 km/h resolution to diesel level sensing in sloshing tanks, our products keep operators informed and systems safe.

Request Technical Datasheets Speak to an Engineer

Electronic Product Range

Six Sensing & Control Families

Each product family addresses a critical monitoring or protection function. Our electronic systems are designed for direct plug-and-play replacement of OEM instruments on common locomotive platforms.

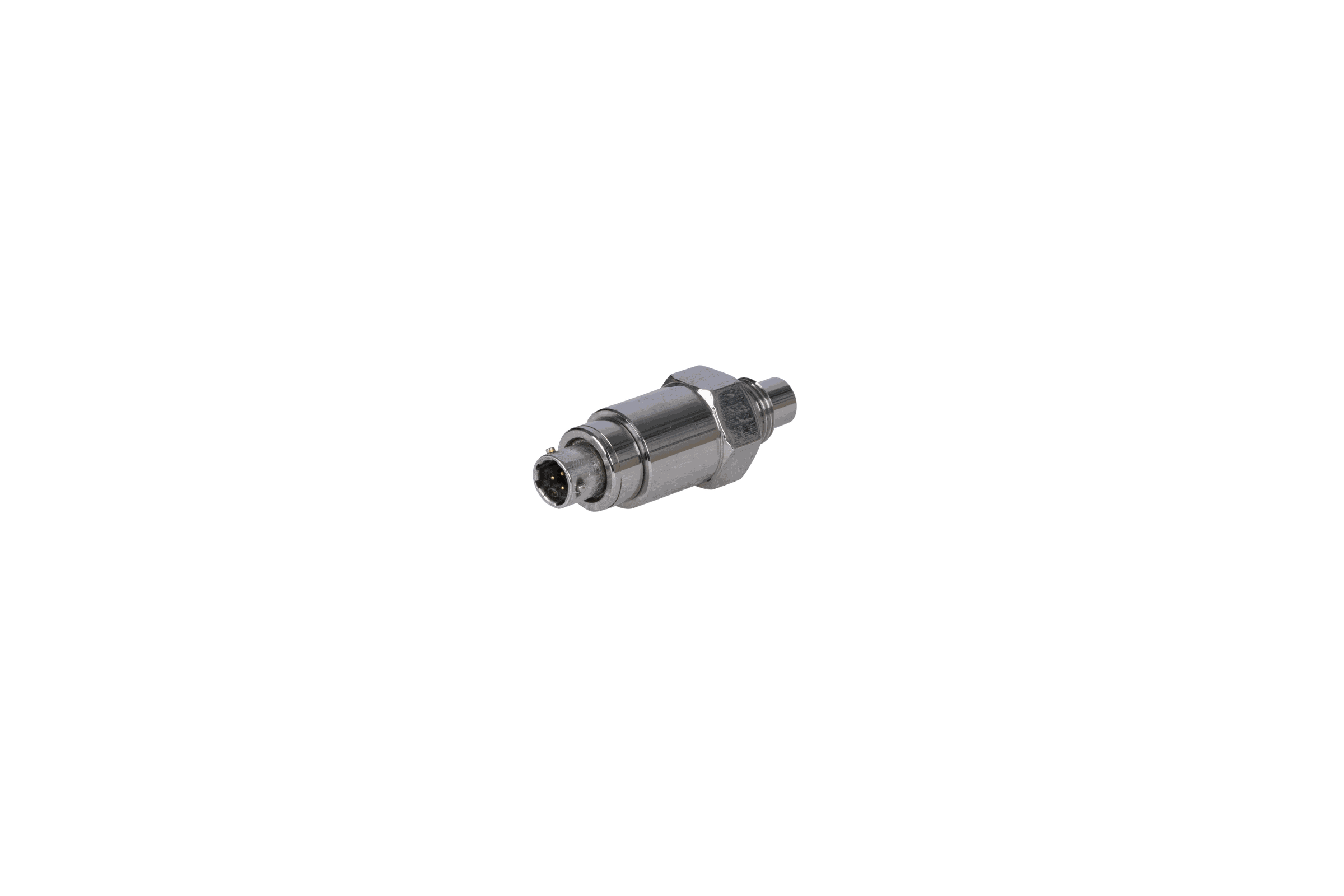

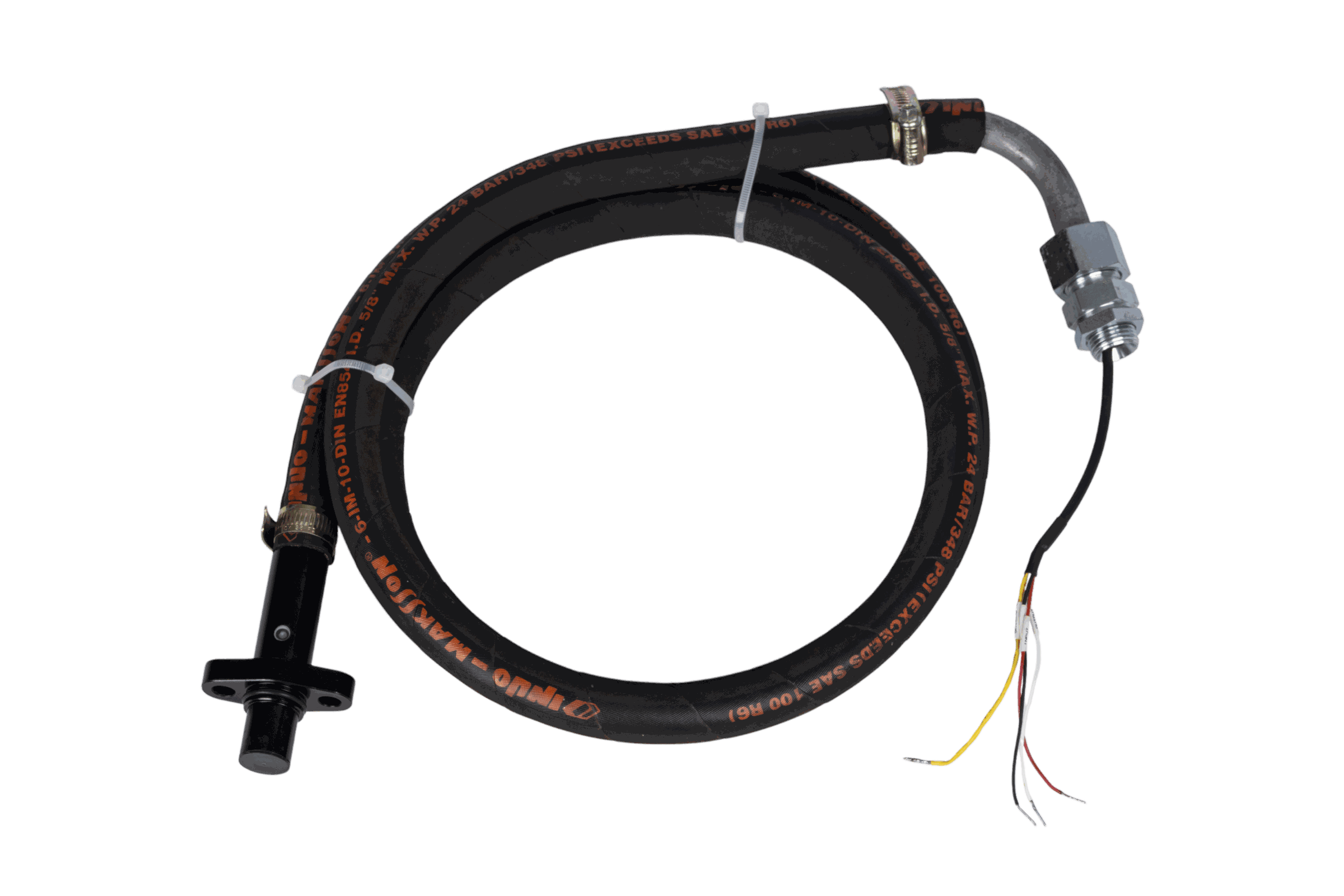

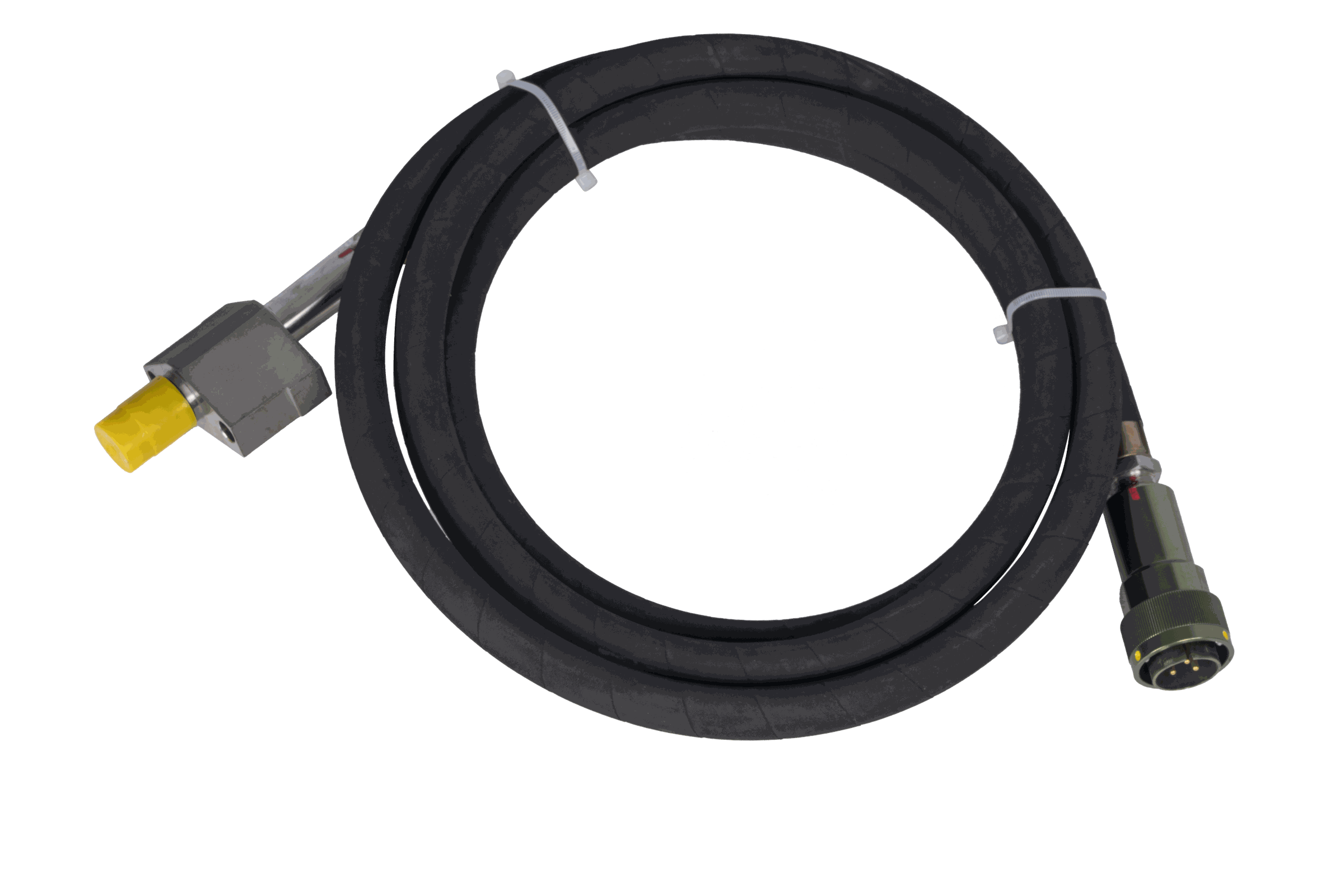

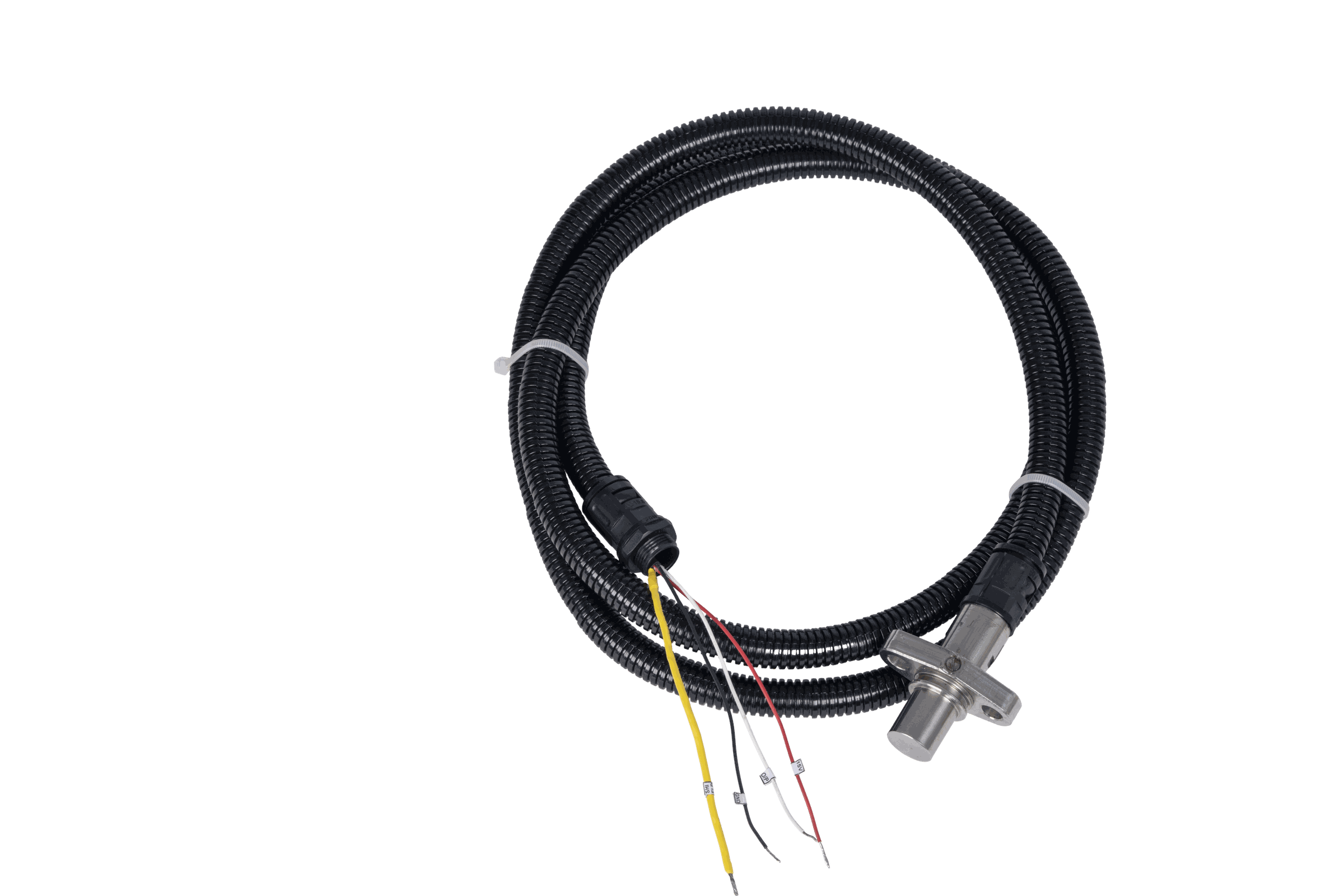

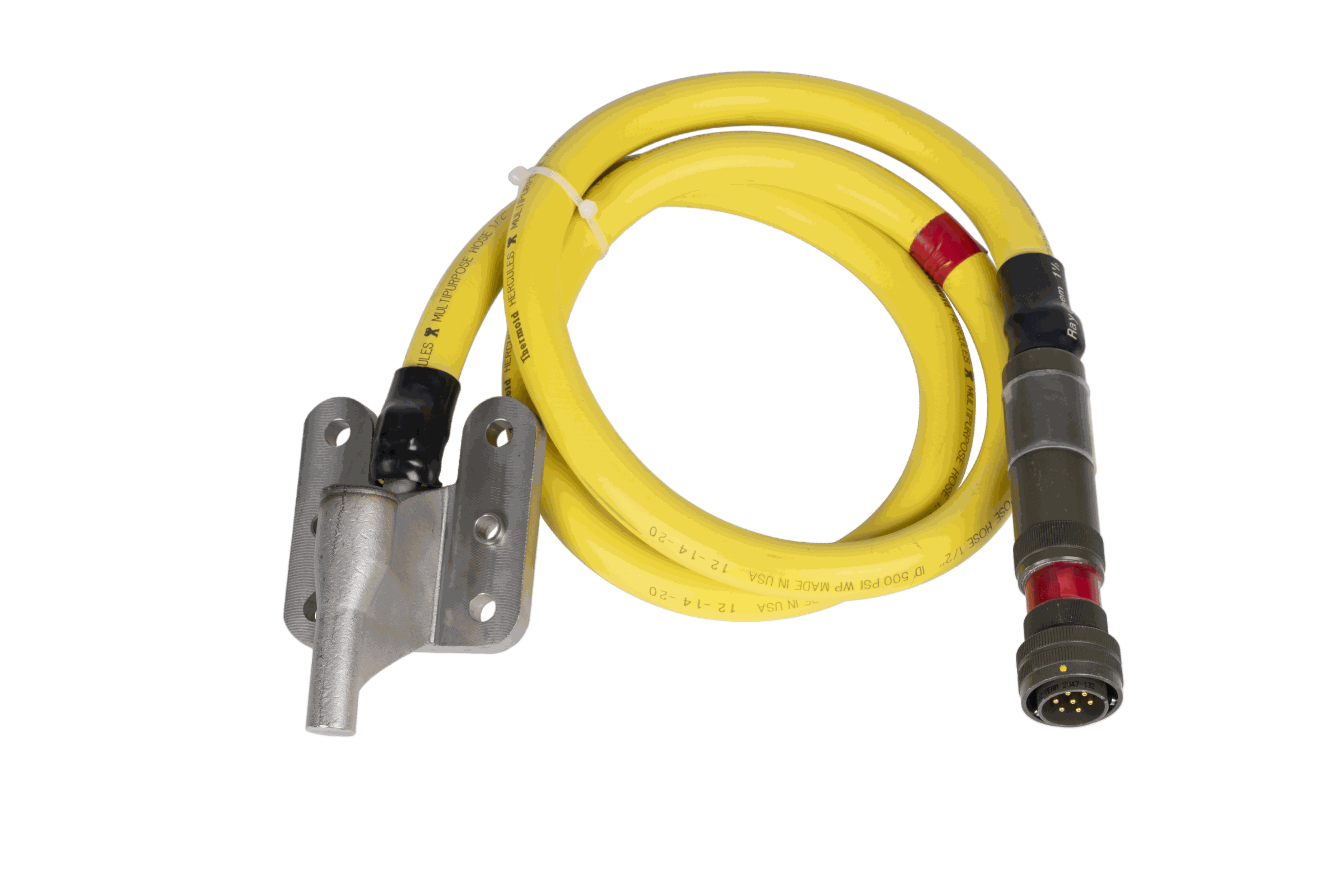

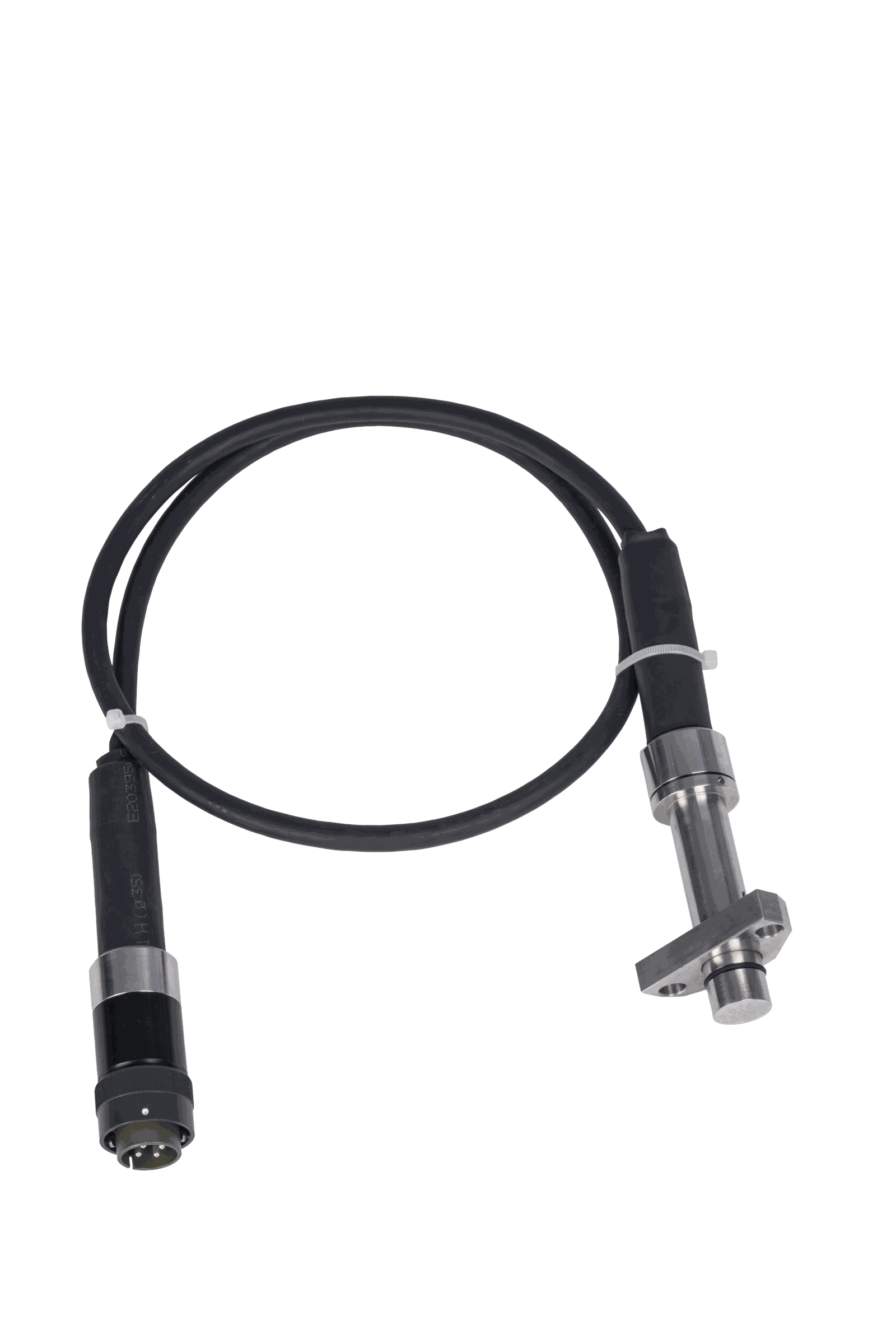

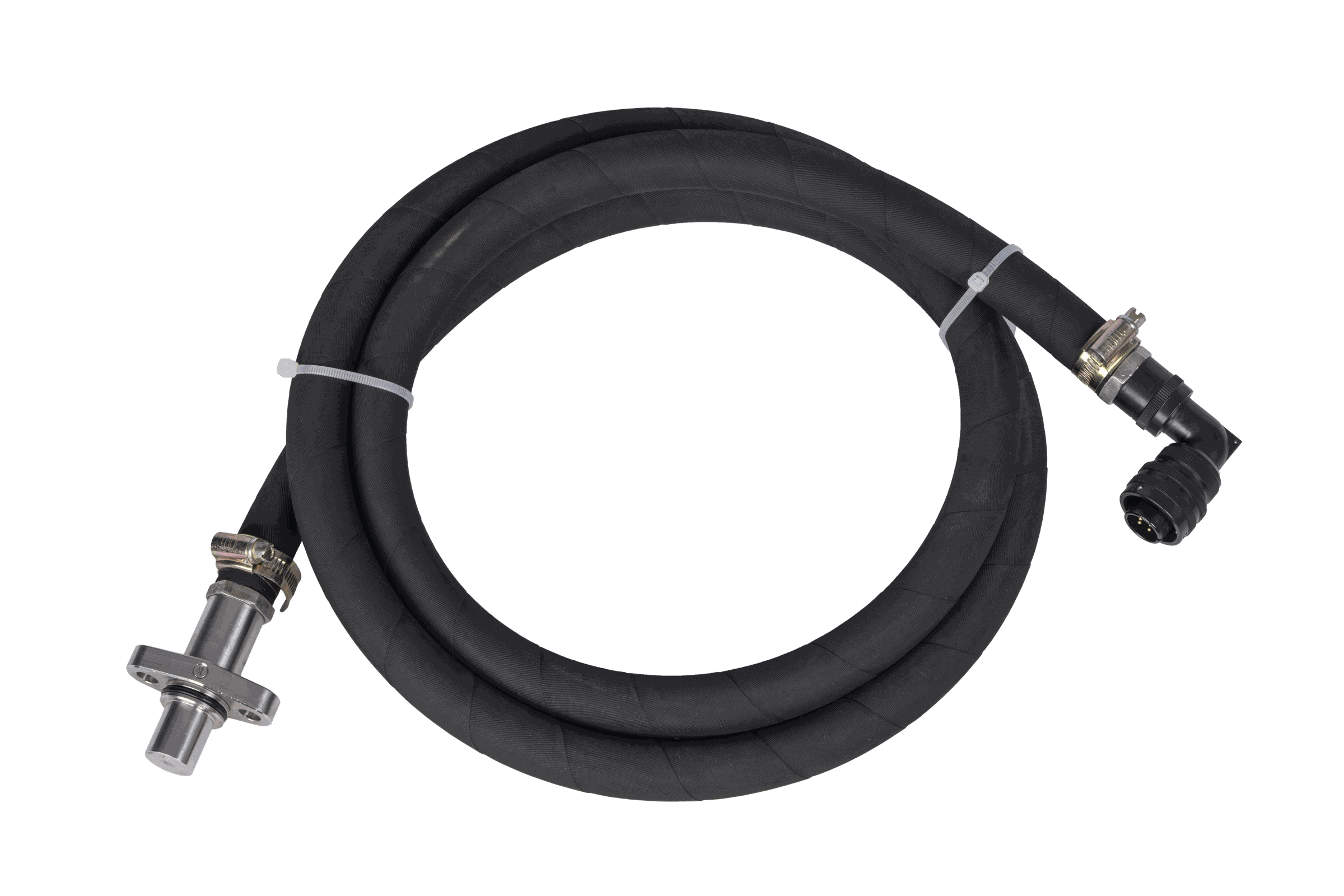

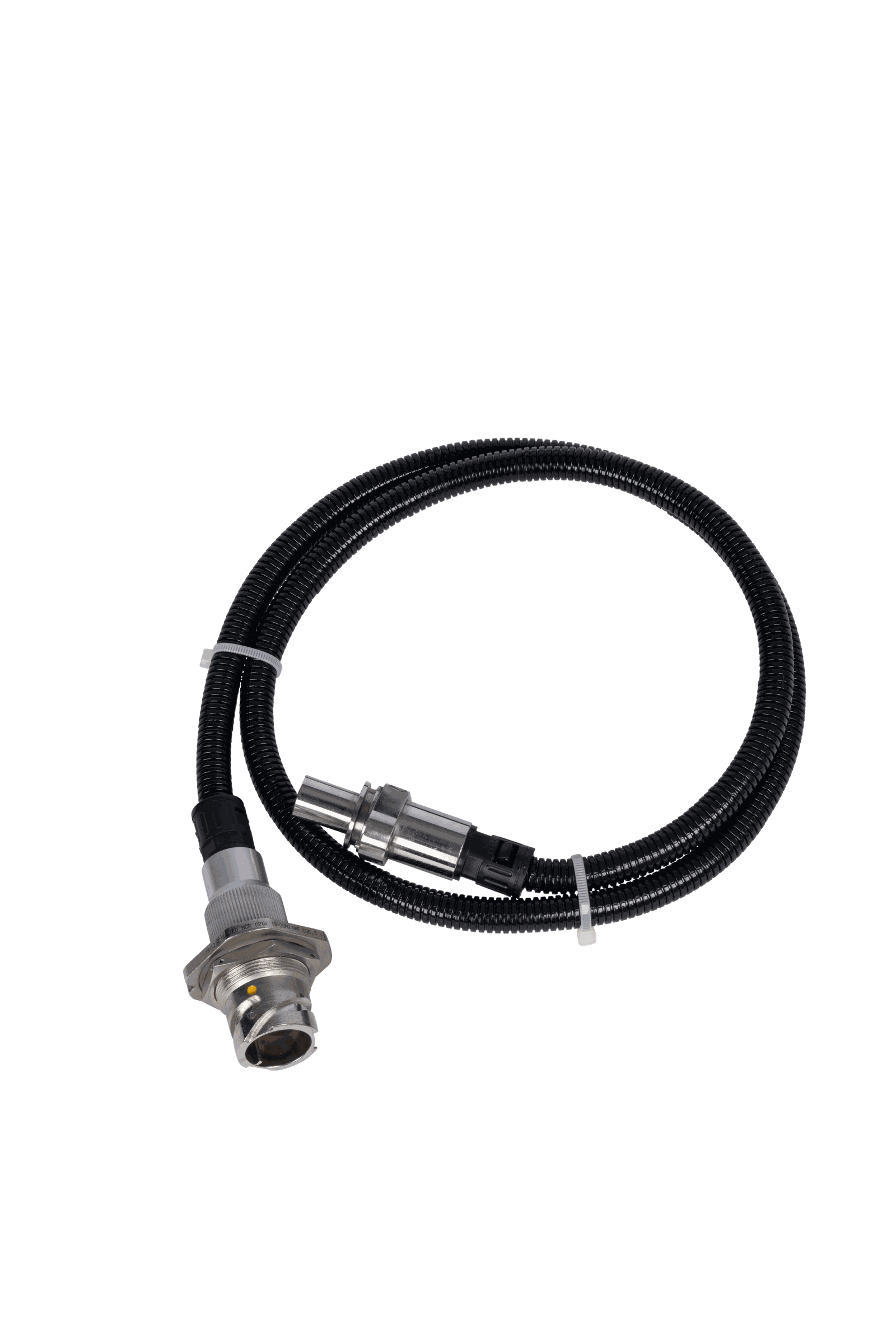

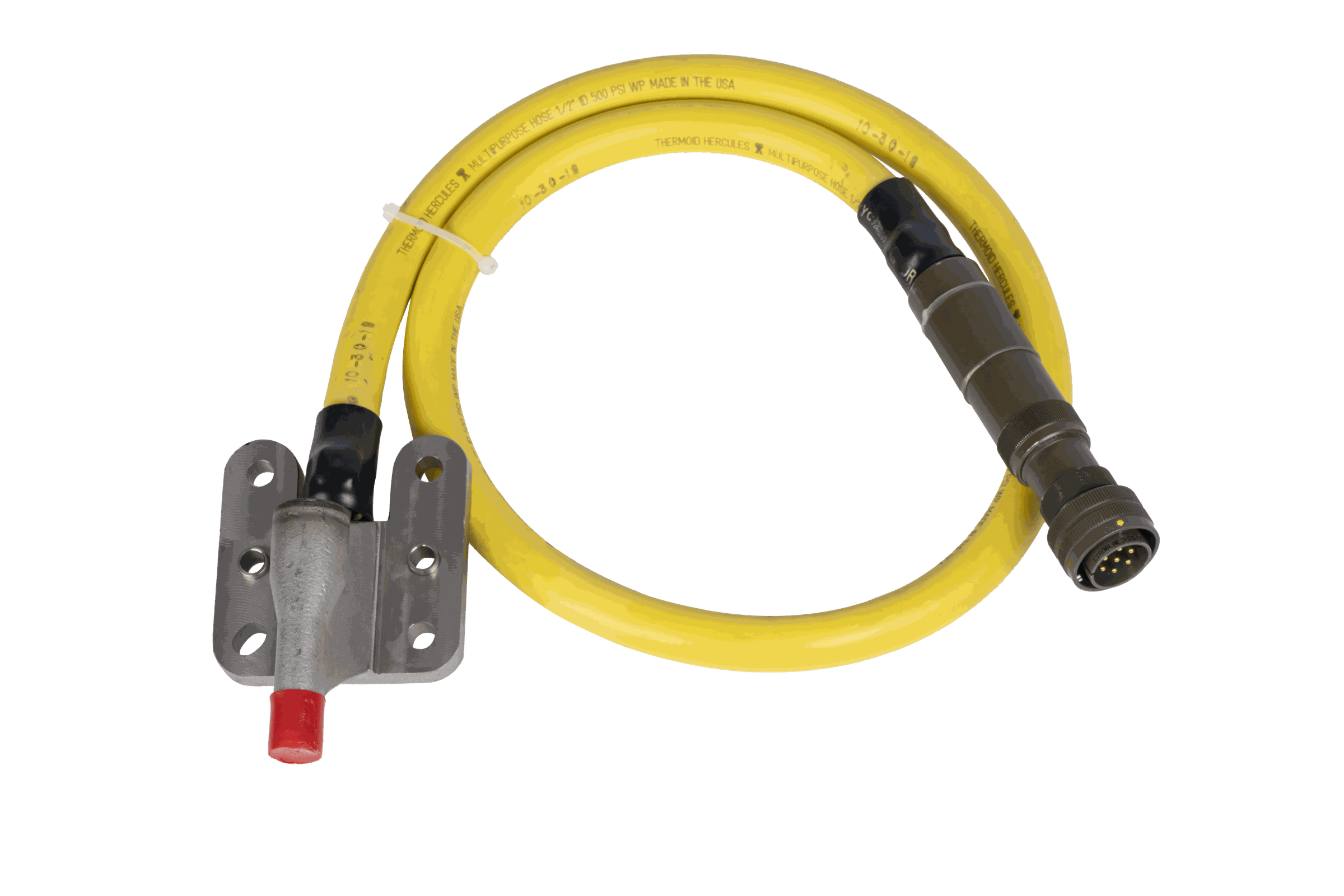

Hall-Effect Speed Sensors

Non-contact wheel speed and axle rotation sensors using Hall-effect technology for robust, maintenance-free operation in the high-vibration and contamination environment of the locomotive underframe. Output signal is compatible with standard locomotive speed recording and protection systems.

Frequency output: 0 — 15 kHz
IP67 enclosure rating
Direct replacement for OEM sensors

RDSO Approved

Pressure Transducers

Precision piezo-resistive pressure transducers for engine lube oil, fuel, air brake, and coolant systems. Designed for continuous operation in pulsating pressure environments with high EMI/RFI immunity to eliminate false readings near traction power equipment.

Ranges: 0–10 bar to 0–600 bar
Output: 4–20mA, 0–5V, 0–10V
±0.5% full-scale accuracy

IEC 61298 Compliant

Radar Level Sensors

FMCW radar-based fuel and water level measurement for locomotive tanks. Unlike float and ultrasonic systems, our radar sensors maintain accuracy regardless of tank sloshing, foam, vapour, or temperature variation — giving the driver reliable fuel range information at all times.

Measurement range: 0.3 — 10m
Accuracy: ±5mm
No moving parts — zero maintenance

ATEX Zone 0 Options

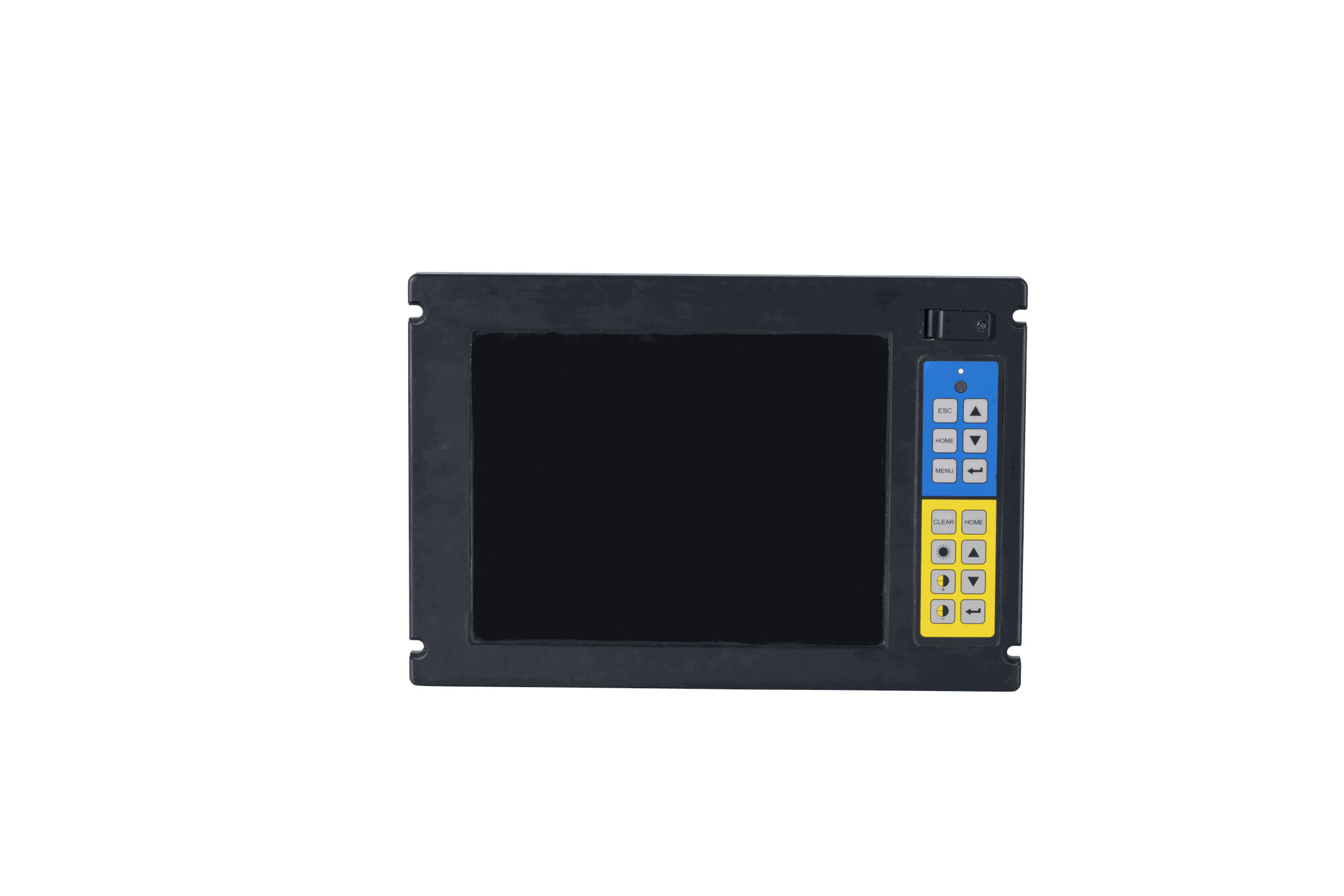

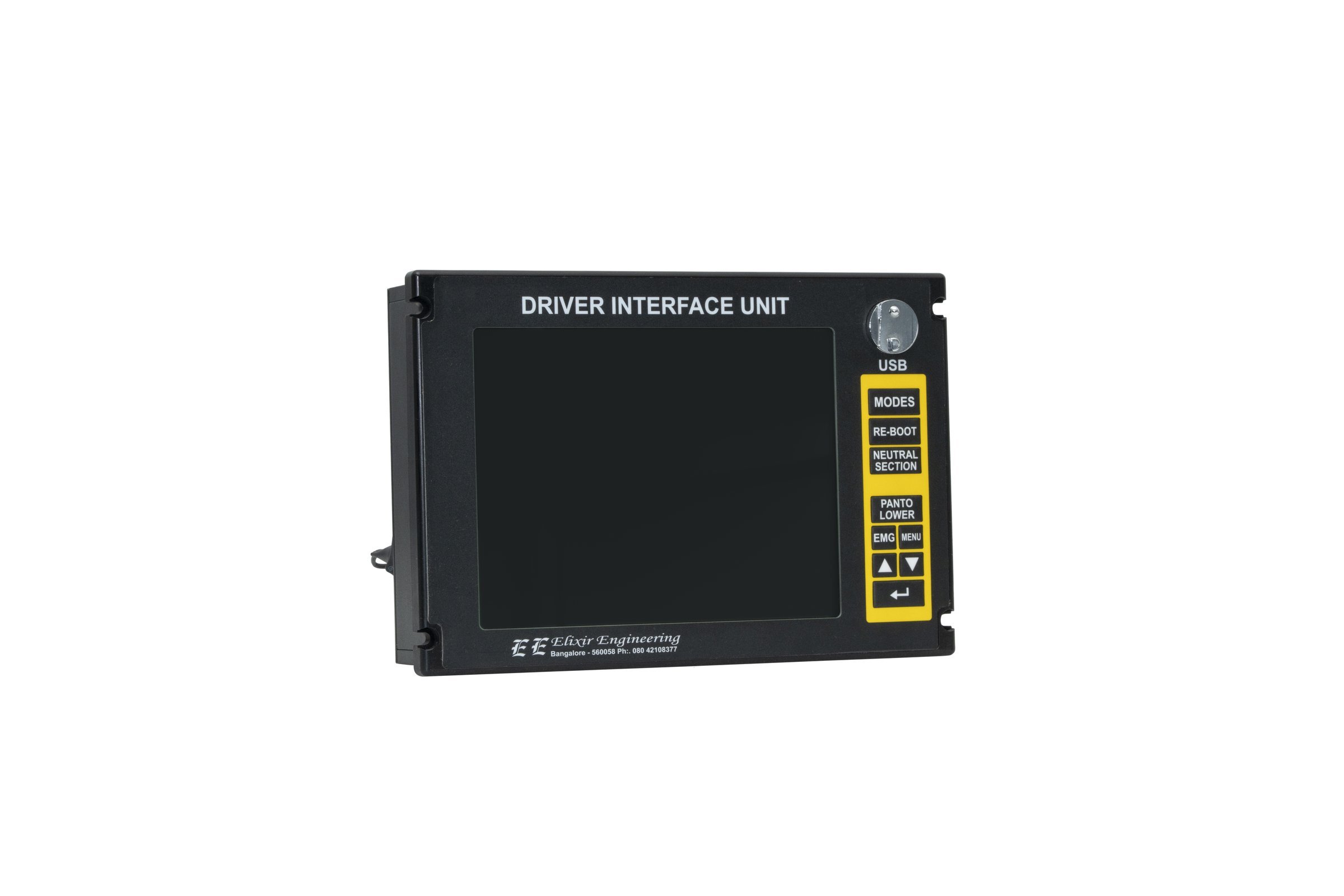

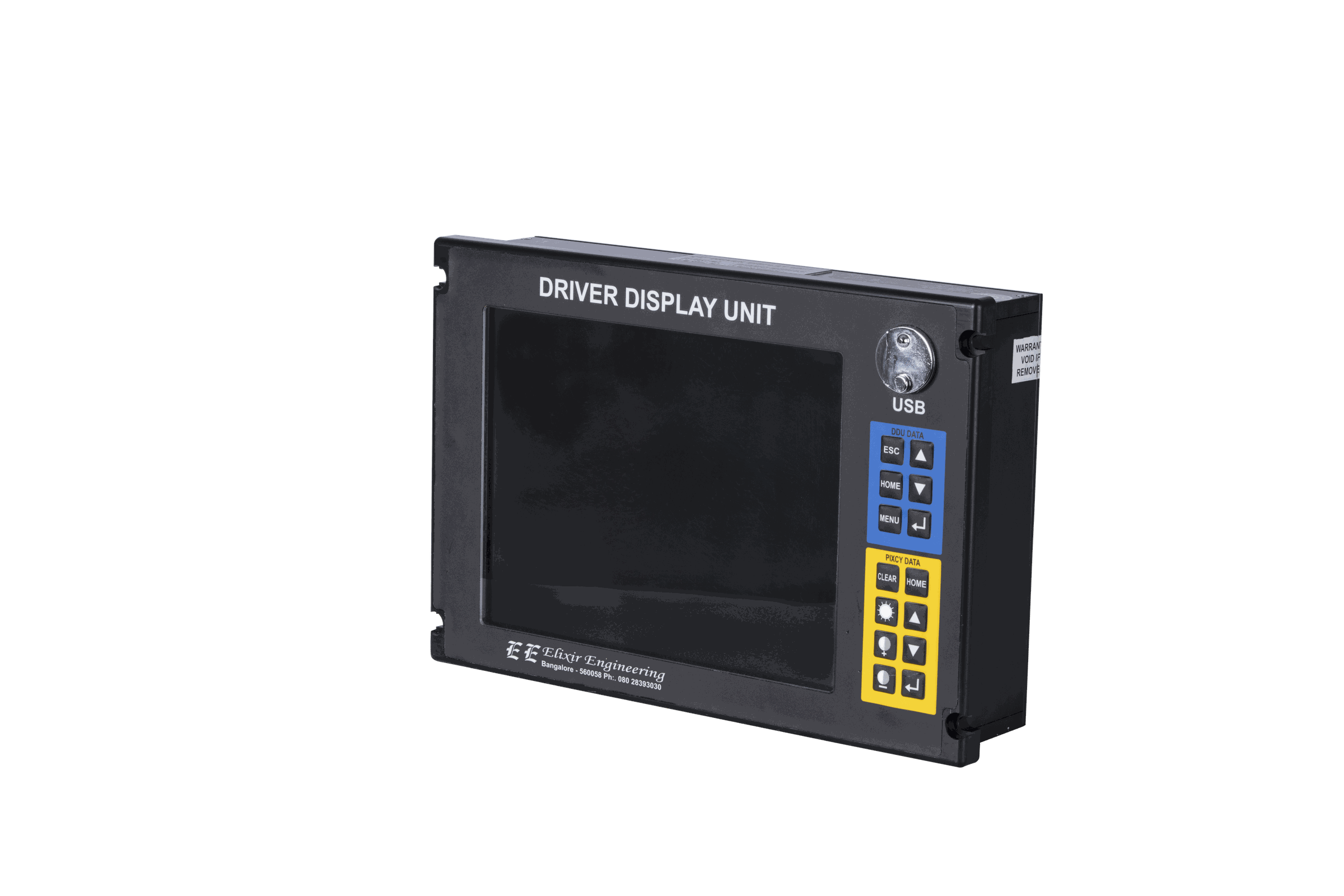

Driver Display Units

Sunlight-readable TFT LCD instrument panels for locomotive cab fitment, presenting real-time speed, engine parameters, fuel level, brake pipe pressure, and fault alerts in a clear, ergonomically designed interface. Ruggedised for the harsh vibration and thermal environment of locomotive cabs.

7" and 10.4" panel sizes available
1000 nit brightness — full daylight readable
CAN bus / RS485 / Modbus interface

RDSO Spec. Compliant

Engine Protection Devices

Integrated engine protection modules monitoring lube oil pressure, coolant temperature, crankcase pressure, and overspeed conditions — triggering automatic engine shutdown to prevent catastrophic damage in the event of a critical parameter exceedance.

Up to 16 configurable protection channels
Event logging with timestamped fault history
Fail-safe relay outputs

SIL 2 Options Available

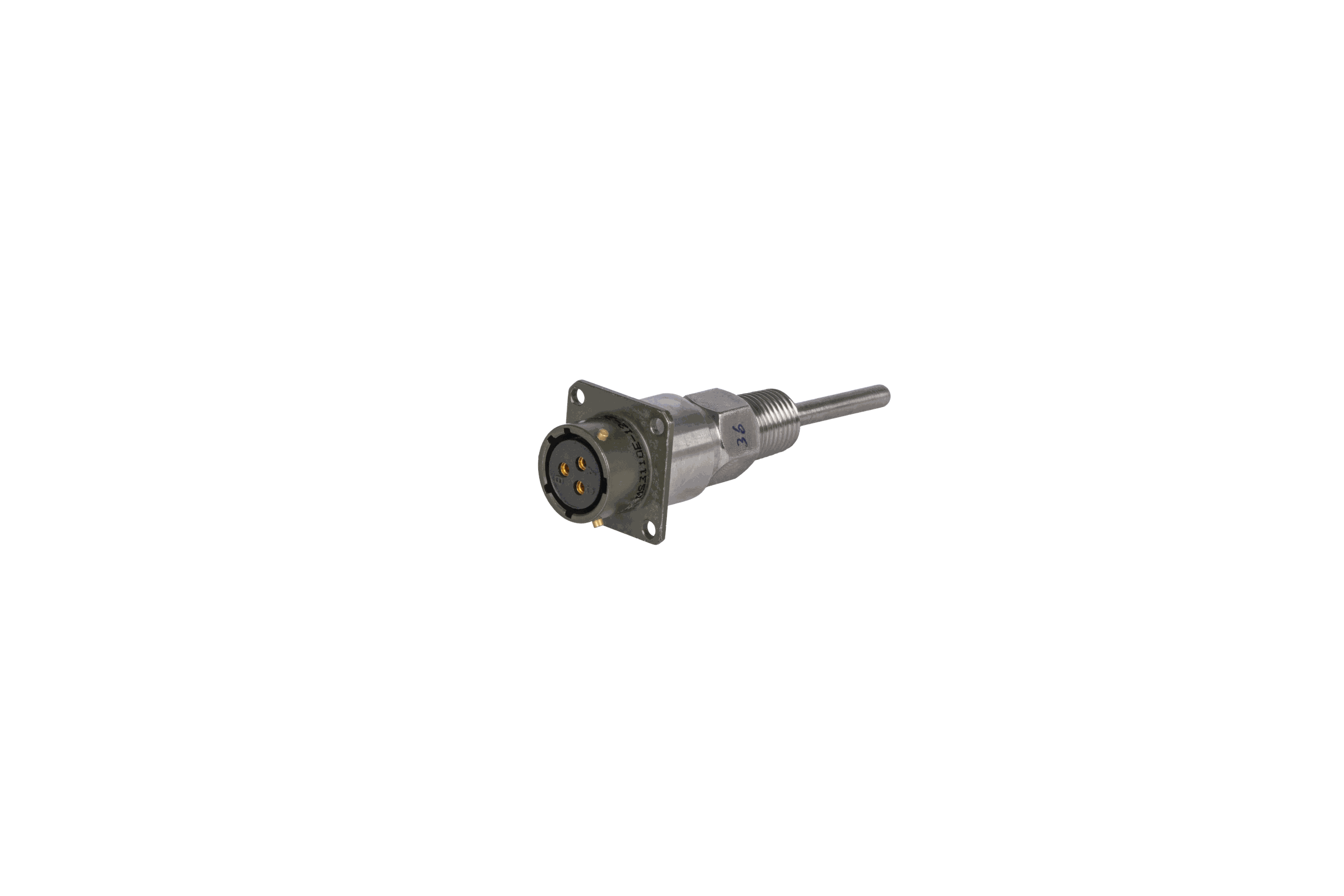

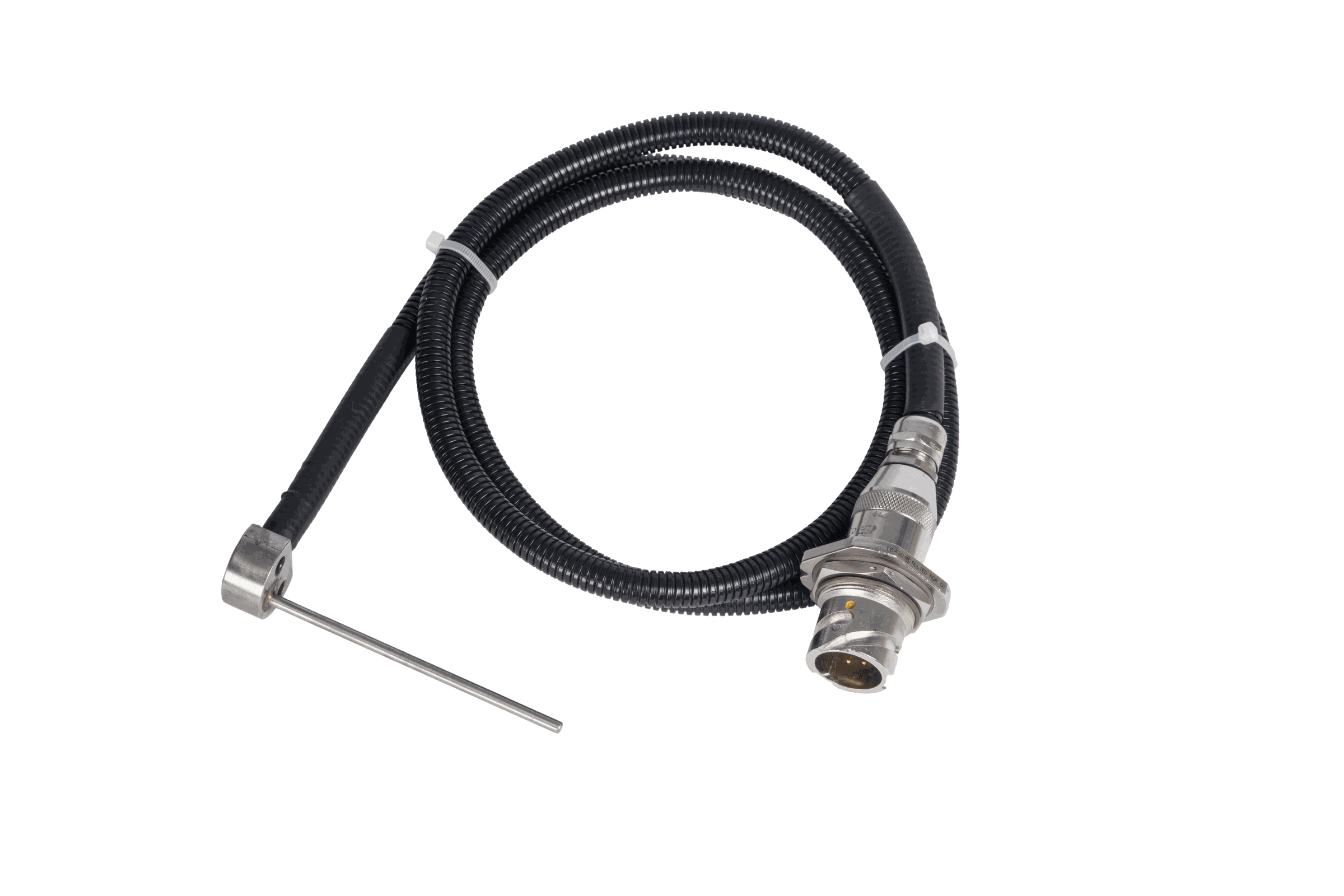

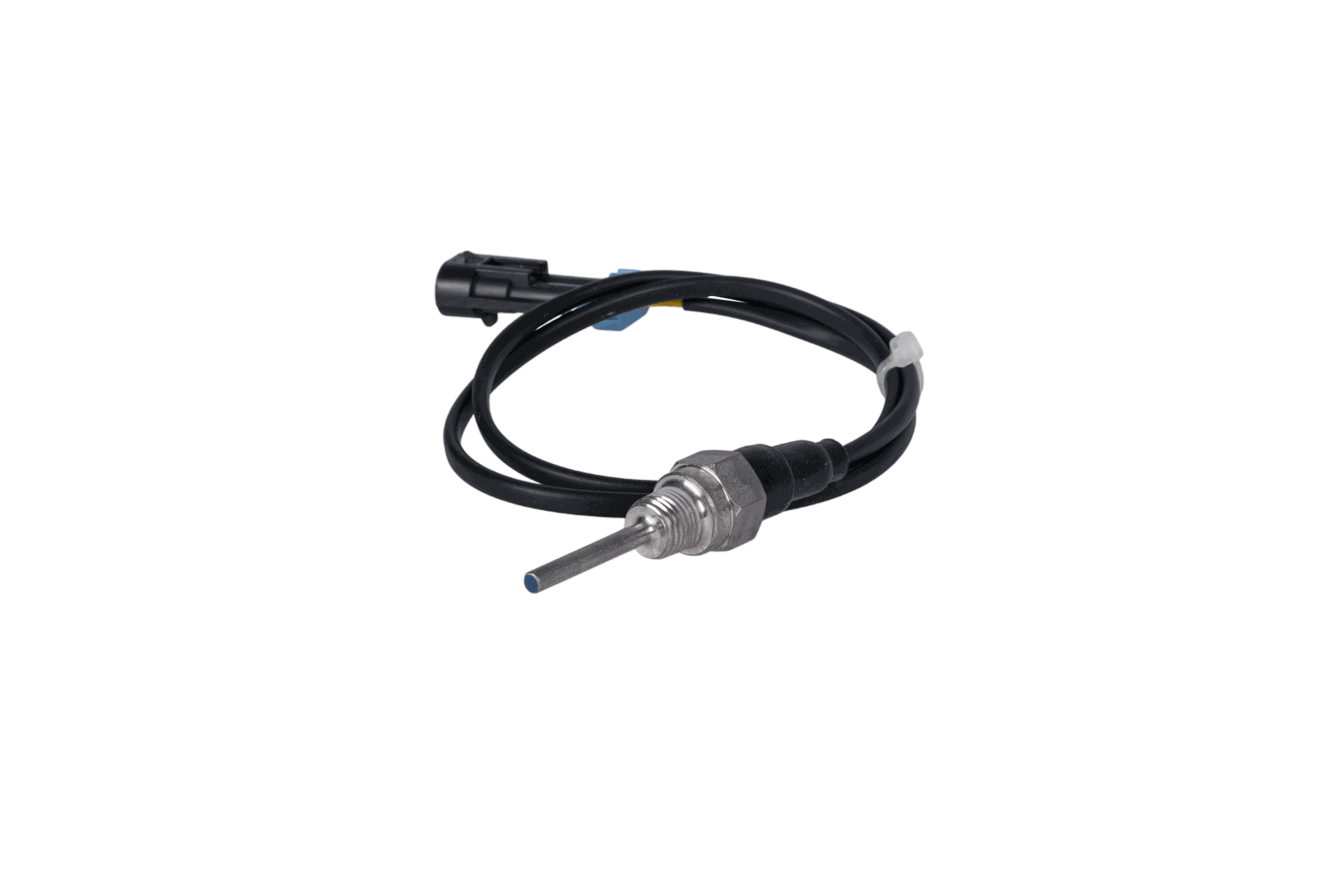

Temperature Sensors

PT100 RTD and NTC thermistor sensors for coolant, lube oil, exhaust gas, and motor winding temperature monitoring. Available in a wide range of process connections and cable assemblies for direct retrofit into existing locomotive wiring looms.

Range: -50°C to +600°C (type dependent)
Class A/B accuracy to IEC 60751
Mineral-insulated cable options

IEC 60751 Certified

Technical Standards & Approvals

Engineered to the
Standards That Matter

Every electronic product in the Elixir Engineering range is developed, tested, and approved against the applicable international and Indian standards for locomotive and industrial electronic systems. This means your maintenance team can specify our products with confidence — and our products will pass audit.

IEC 60068 Environmental testing — temperature, humidity, vibration, shock

IEC 61000 Electromagnetic compatibility — conducted and radiated emissions

IEC 61298 Process measurement — performance evaluation for transmitters

IS 8923 Indian standard for locomotive electronic instruments

RDSO Spec. Research Designs & Standards Organisation approvals

EN 50155 Railway applications — electronic equipment on rolling stock

ELECTRONICS TESTING IMAGE
PCB Assembly · EMC Lab · Calibration · 650×480px

IP67

Ingress Protection

±0.5%

Measurement Accuracy

-40 to +85°C

Operating Temperature

EMC Class A

EMI Immunity Rating

Full Electronic Products Catalogue

Browse our complete sensing, display, and protection product range with specifications and part numbers.

Alternator & Rectifier Components

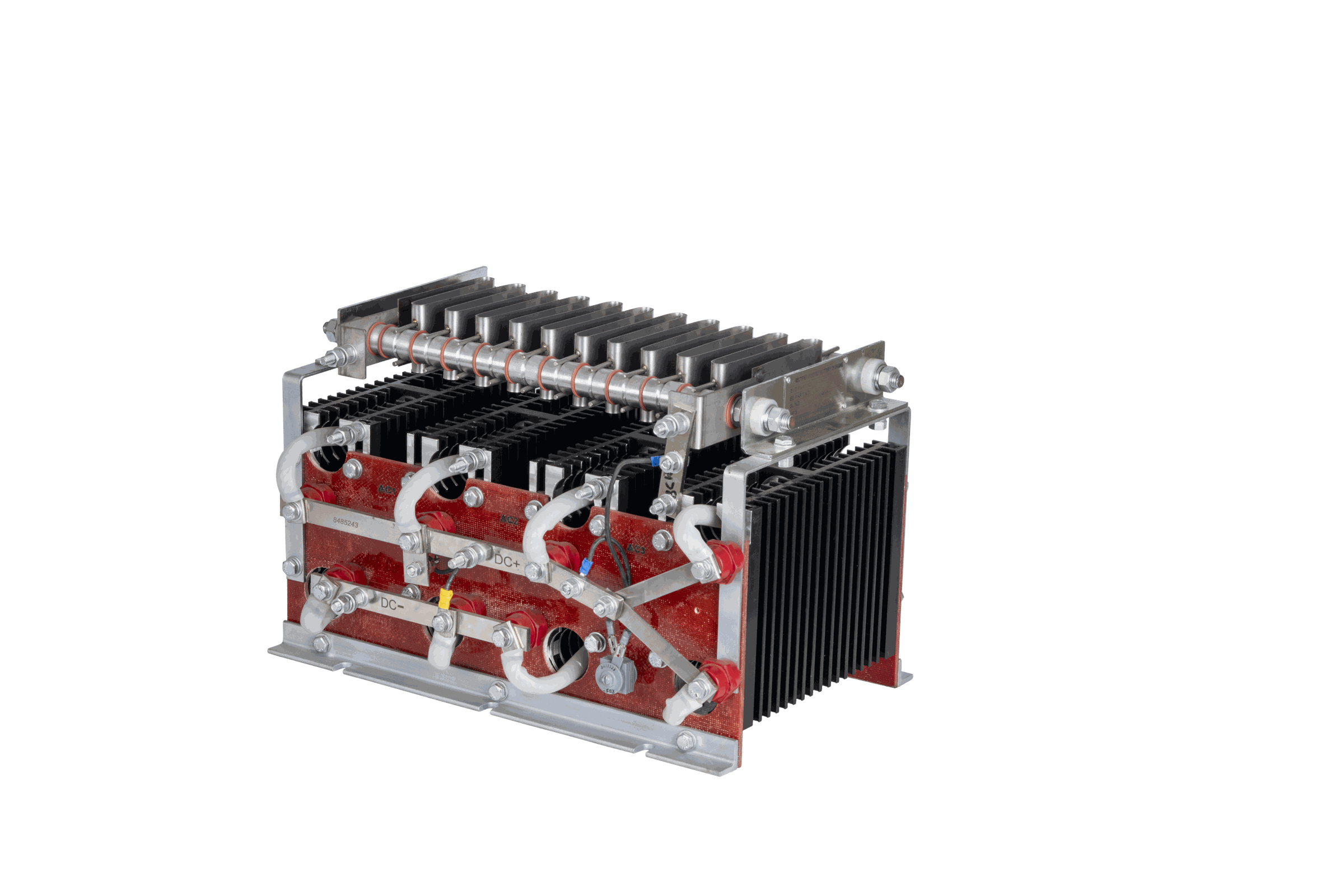

Rectifier & Resistor Assembly Battery Charger (BCR)

8479400

Sensing. Control.Protection. Precision.

Six Sensing & Control Families

Hall-Effect Speed Sensors

Pressure Transducers

Radar Level Sensors

Driver Display Units

Engine Protection Devices

Temperature Sensors

Engineered to theStandards That Matter

Full Electronic Products Catalogue

Alternator & Rectifier Components

Rectifier & Resistor Assembly Battery Charger (BCR)

Rectifier Assembly

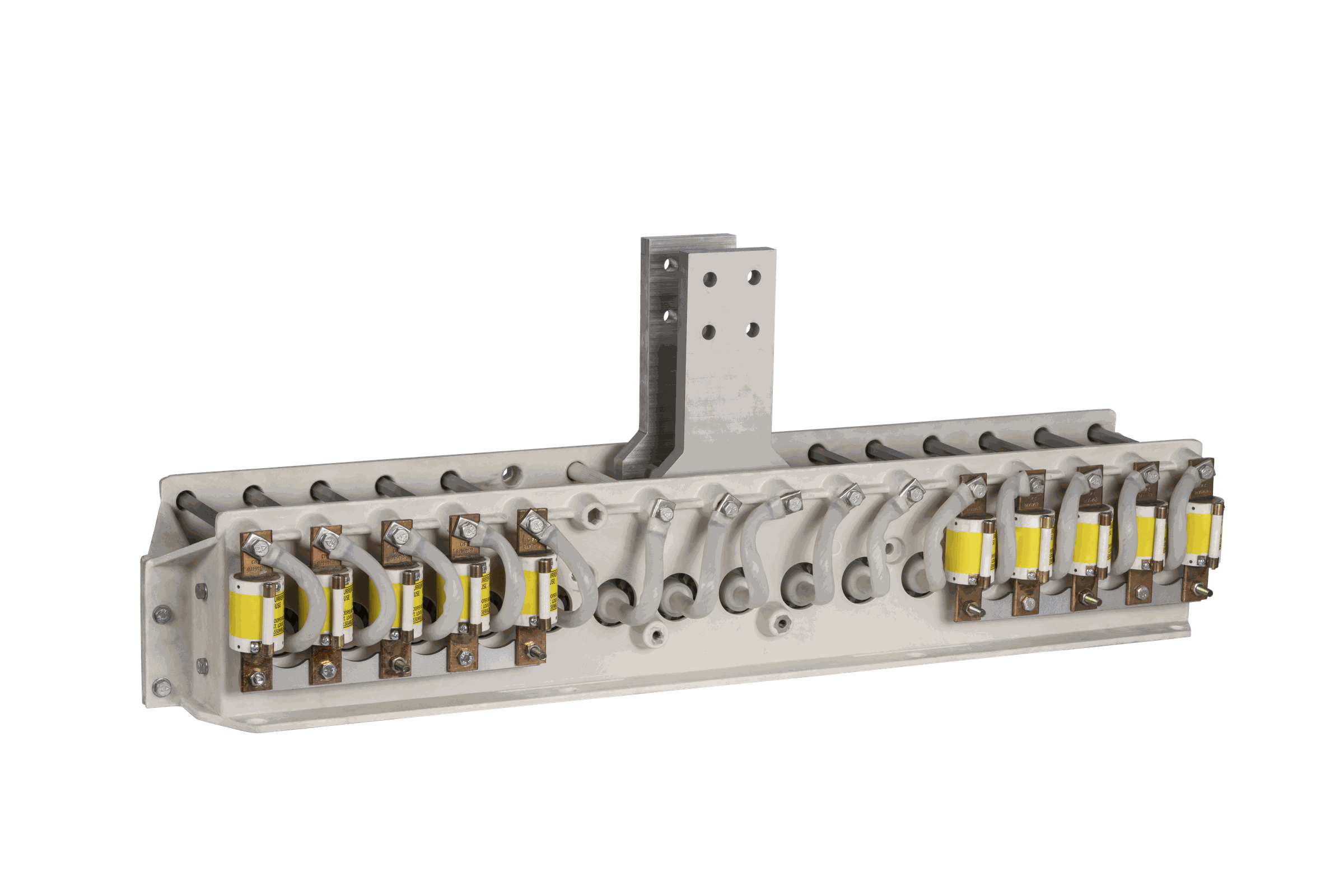

Rectifier Bank Assembly

Rectifier Bank Assembly

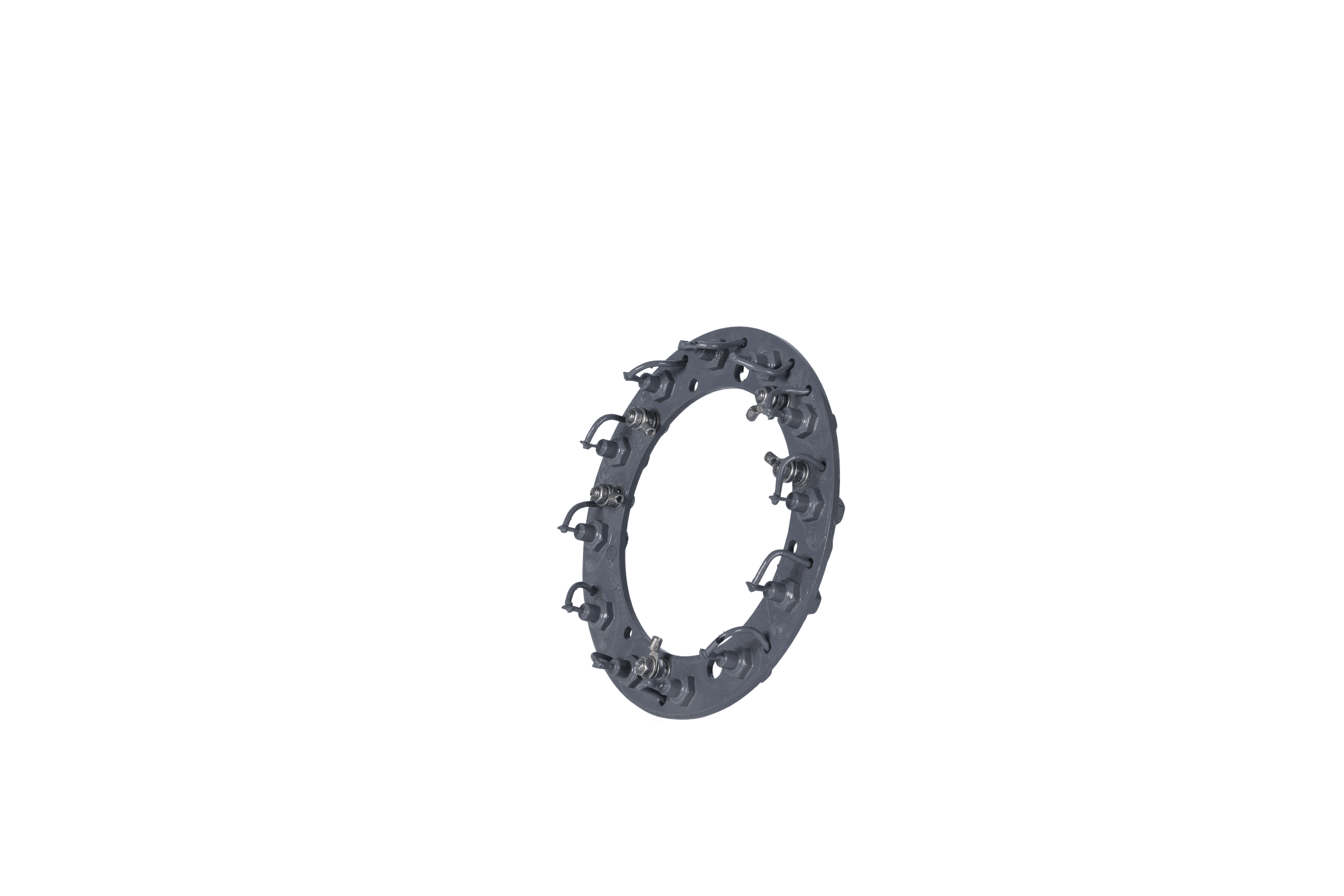

Rotating Ring Rectifier

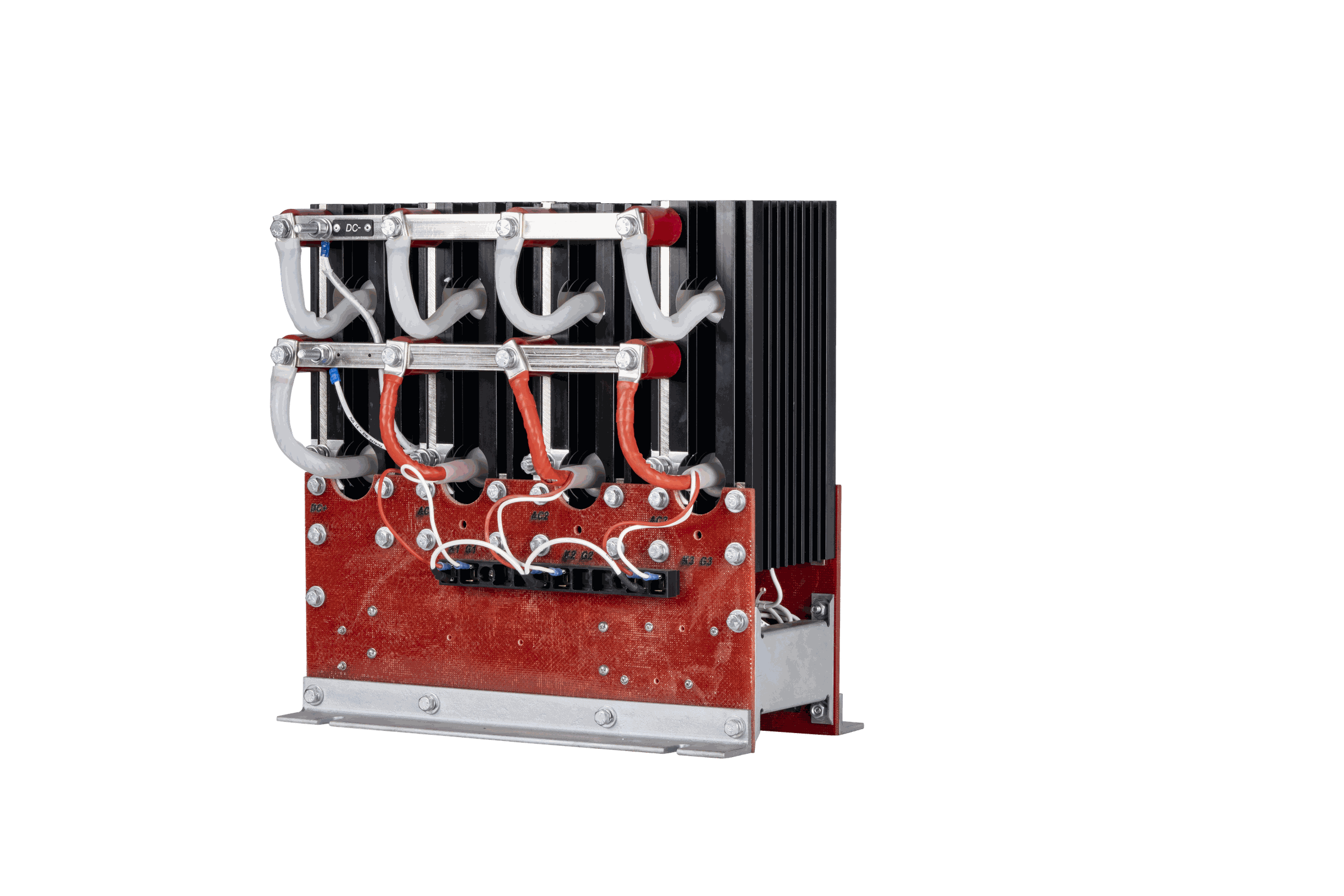

SCR Bridge / Exciter Rectifier Assembly

Capacitors

Capacitor,Filter

Capacitor,Filter

Connector

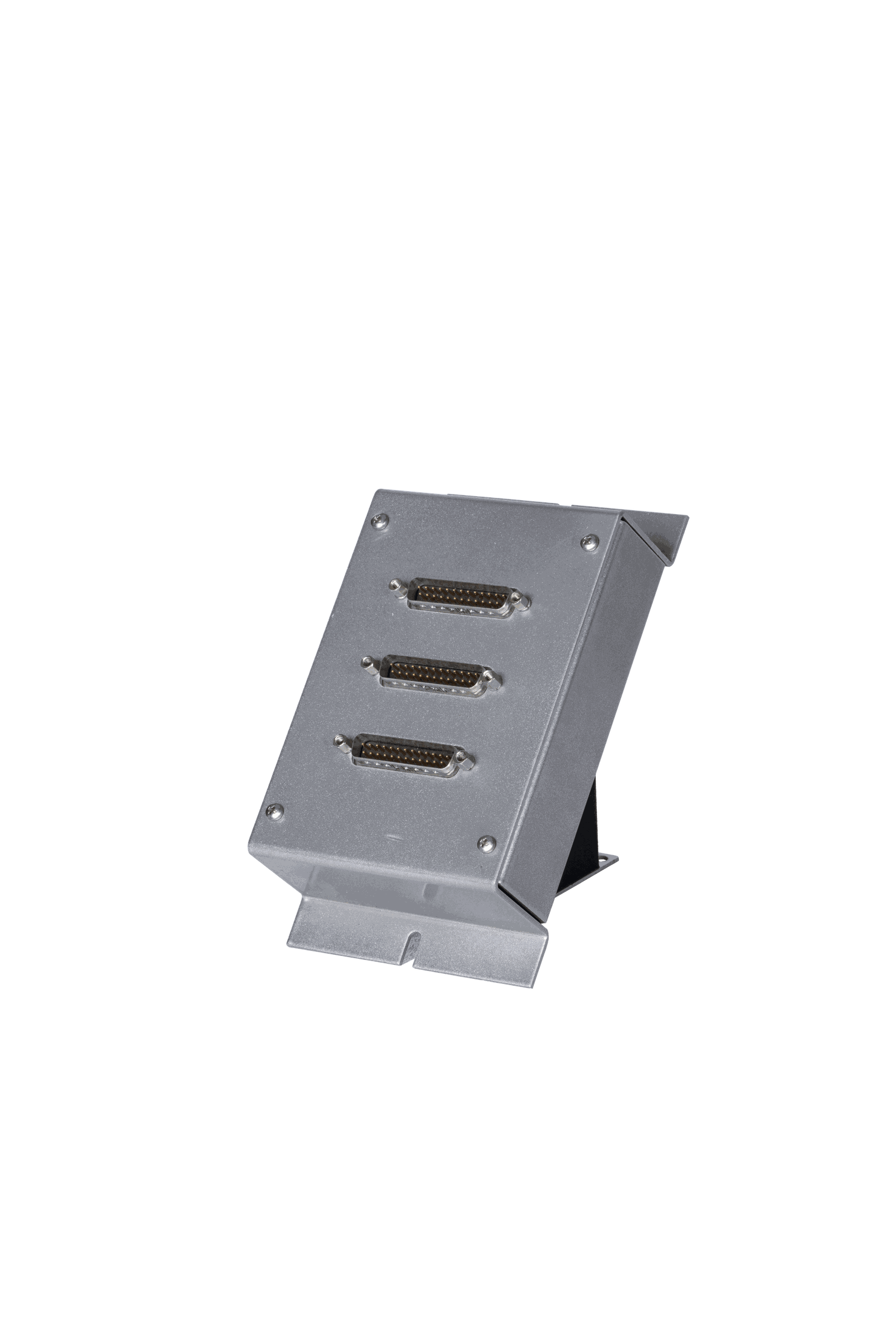

Box, Display Distributor - Dual

Control Cards & Modules

FCFP Panel & PCB

As-Peri Card (Modified)

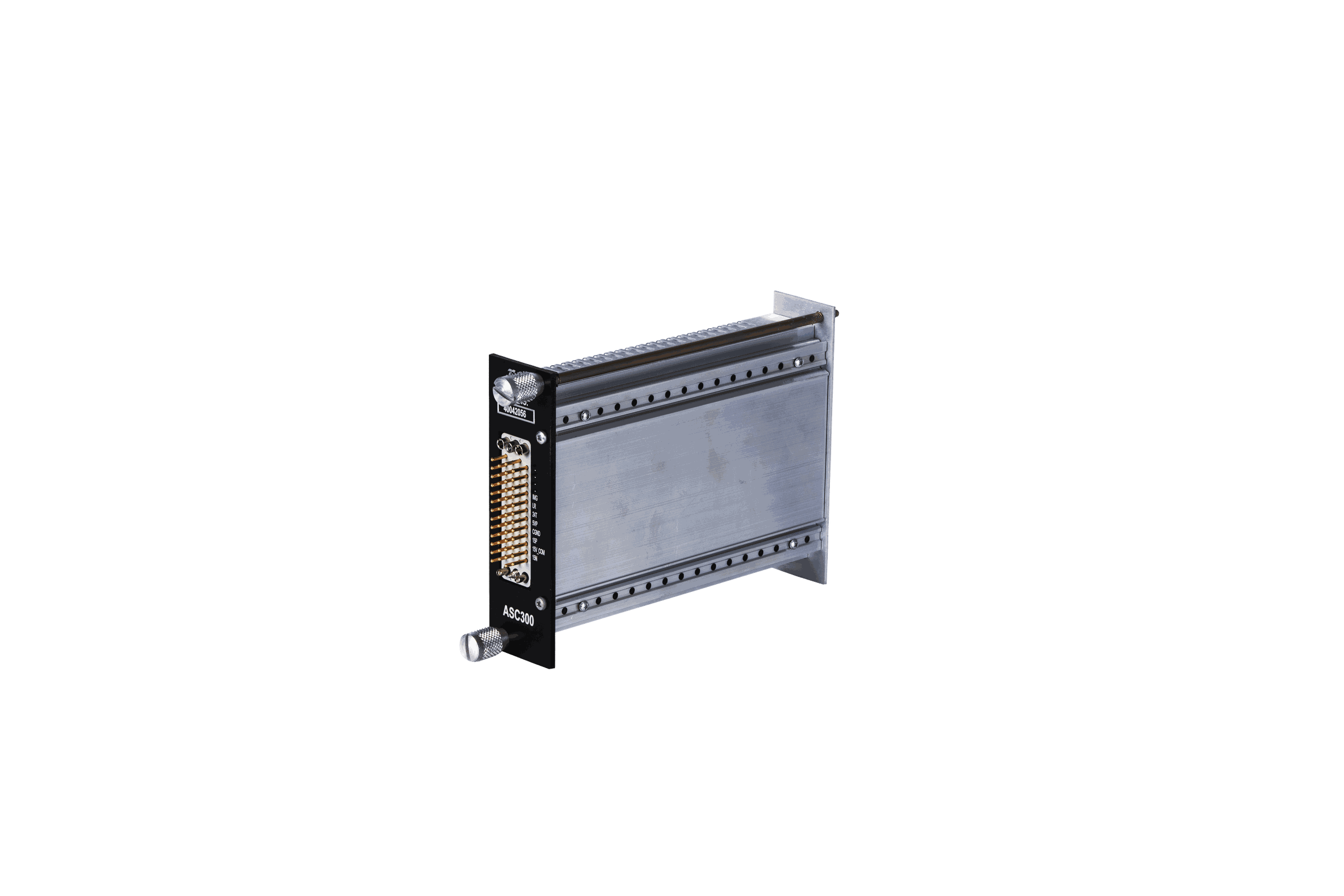

ASC 300 , 301 (Analog Signal Conditioner)

Card 17FB100

Card 17FB100

Card 17FB104

Card 17FB104

Card 17FB140 /B1/B2/A1/A2

Card 17FB140 /B1/B2/A1/A2

Card 17FB160

Card 17FB160

Card 17FB173

Card 17FB173

Card 17FB174

Card 17FB174

Card 17FB179

Card 17FB179

Card 17FB187

Card 17FB187

Card,Diode(W/O Sound)

Card,Diode(W/O Sound)

Card,Diode(W/Sound)

Card,Diode(W/Sound)

Card,Flasher/ Coolant Level

Card,Flasher/ Coolant Level

Card,Single Temperature

Card,Single Temperature

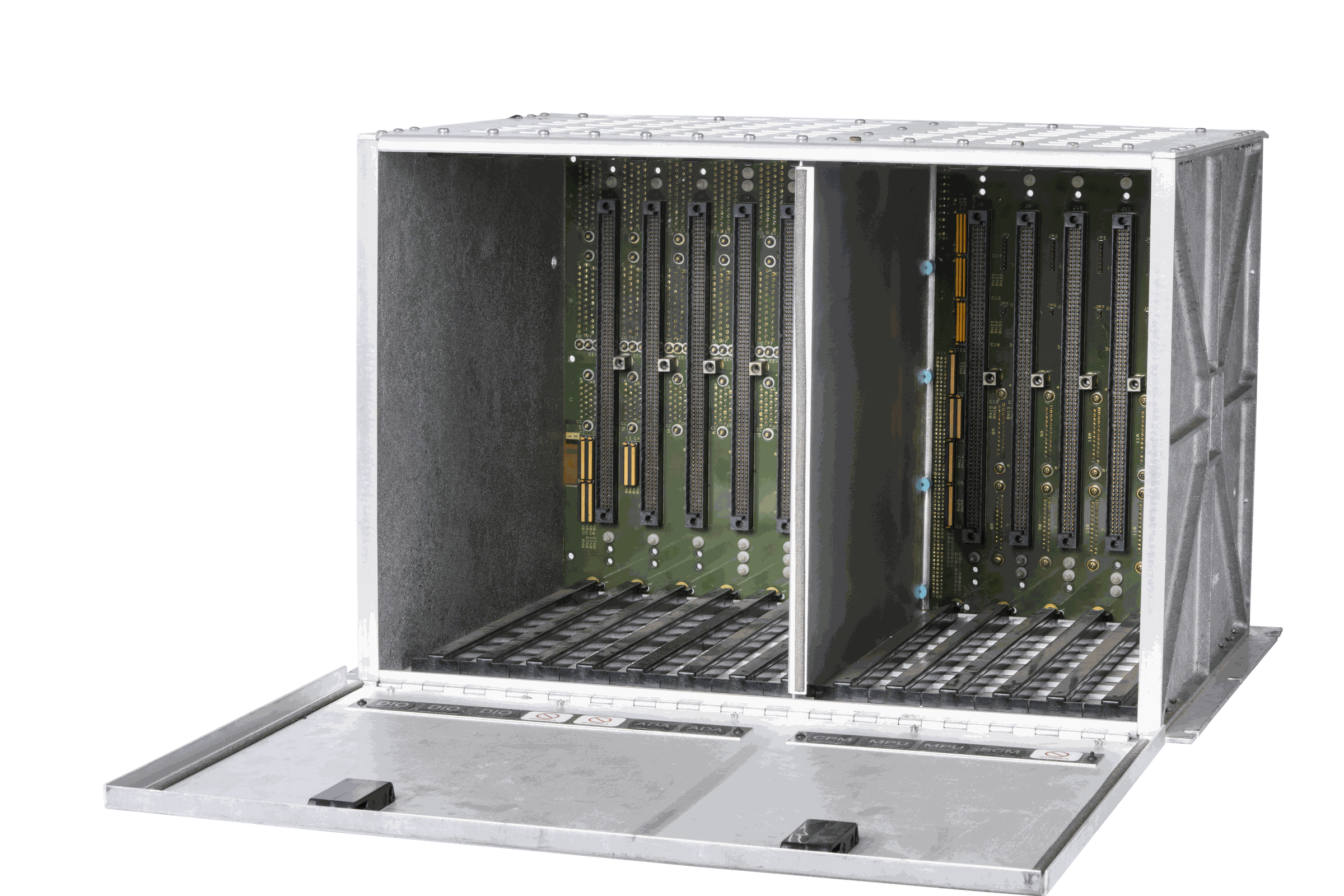

Chassis Assembly Module

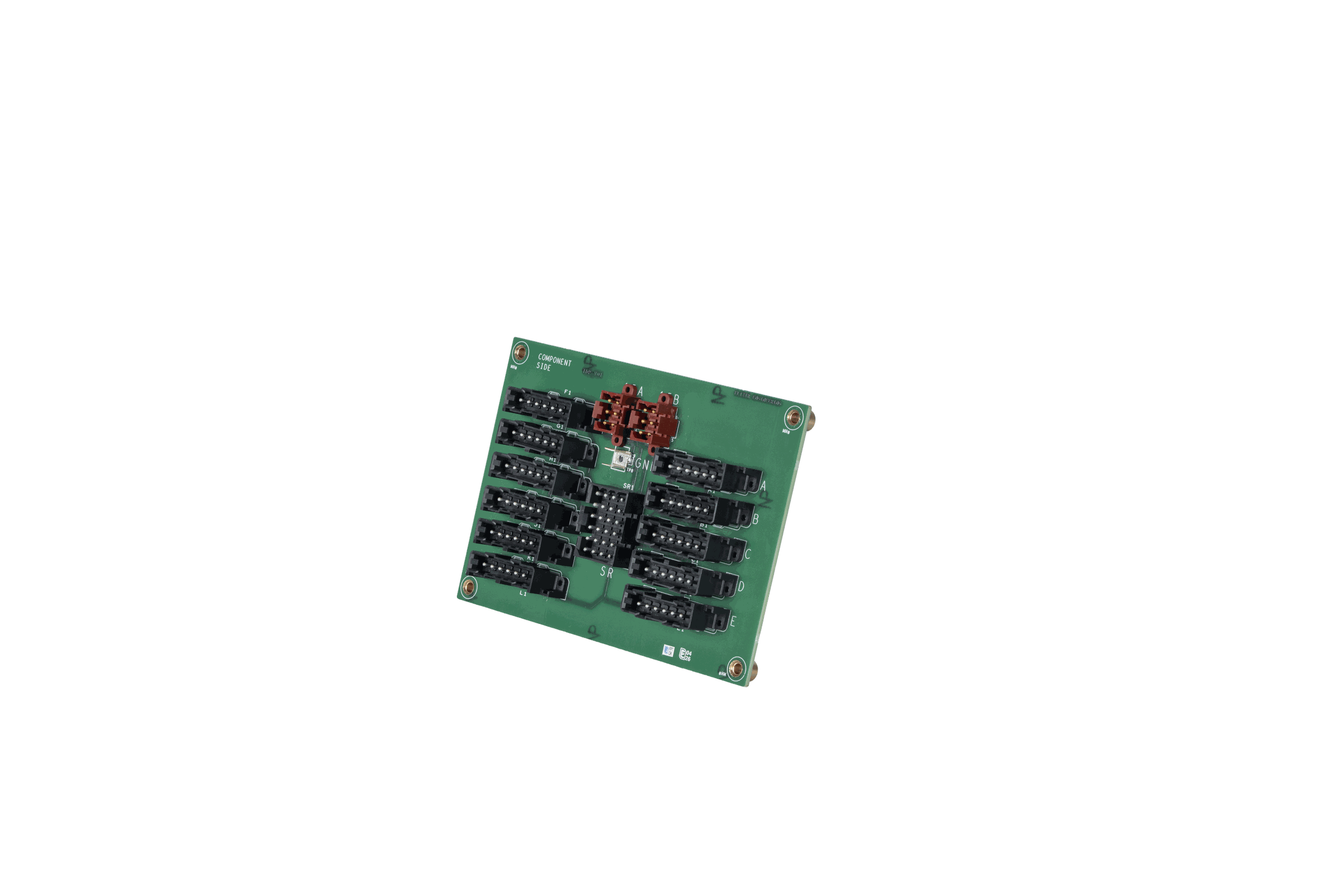

Circuit Module TDP

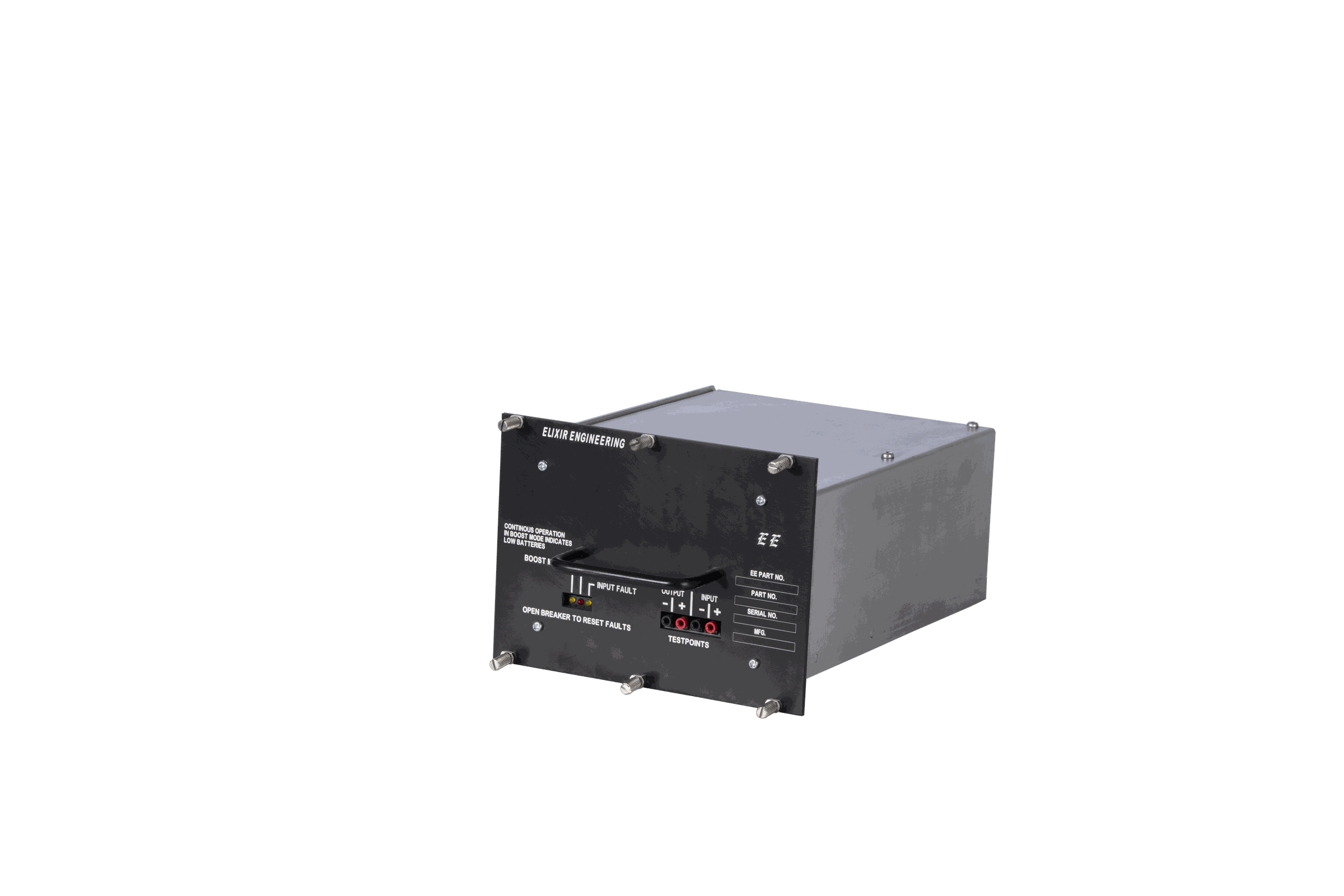

Circuit Module- PRG 301

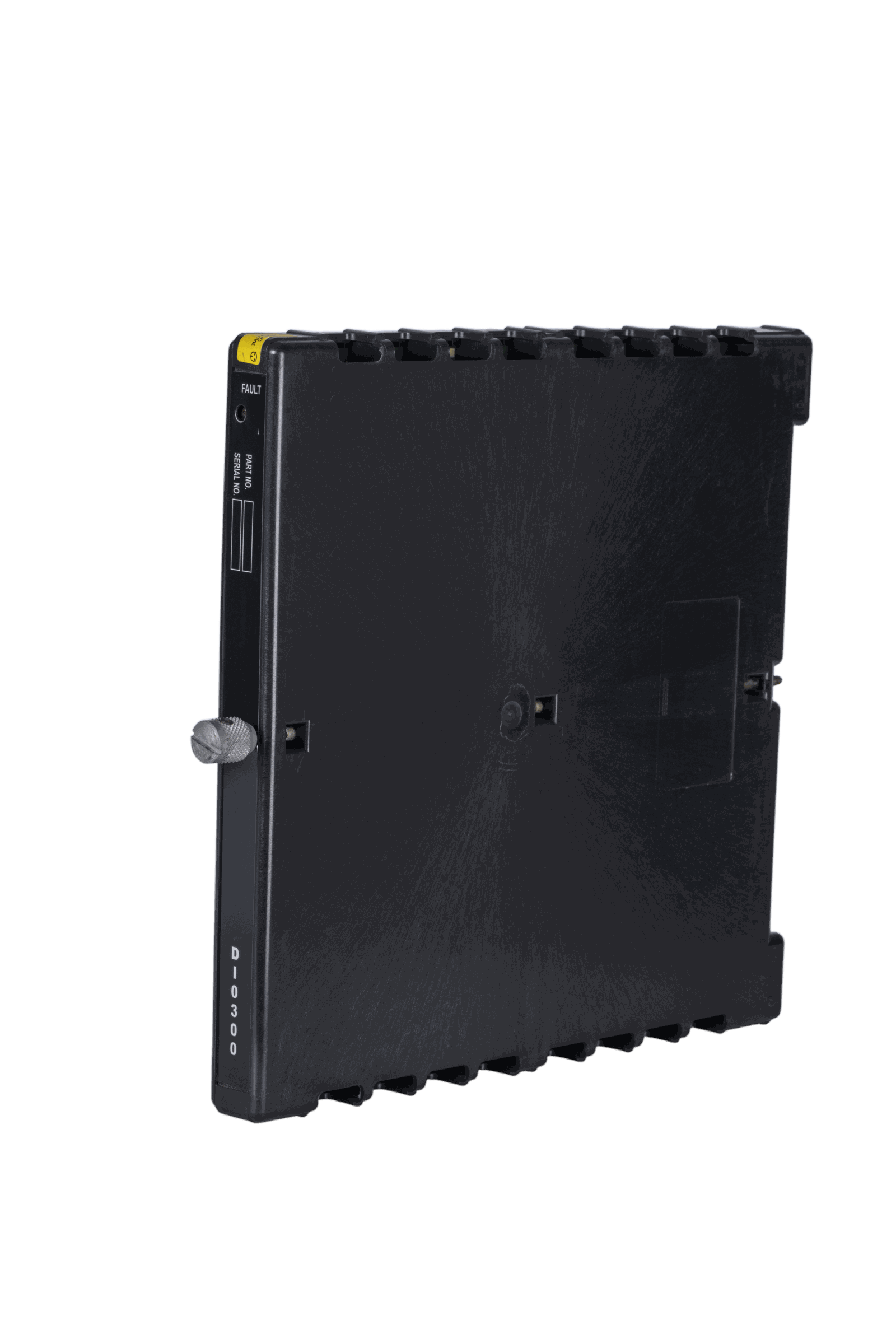

Circuit Module-DIO 300

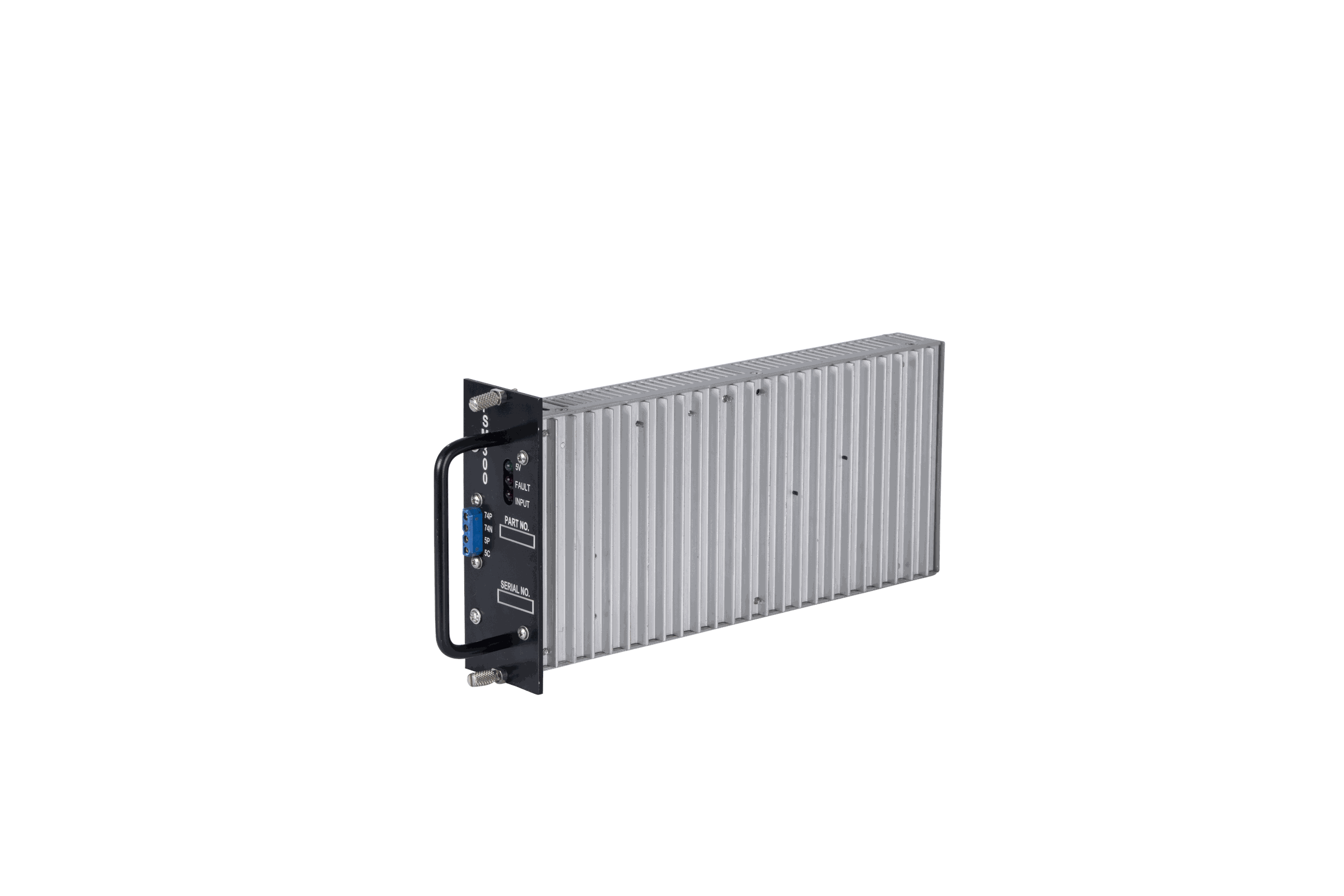

Circuit Module-PSM 300

Circuit Module-PSM 320

Complete IGBT Module -Ve

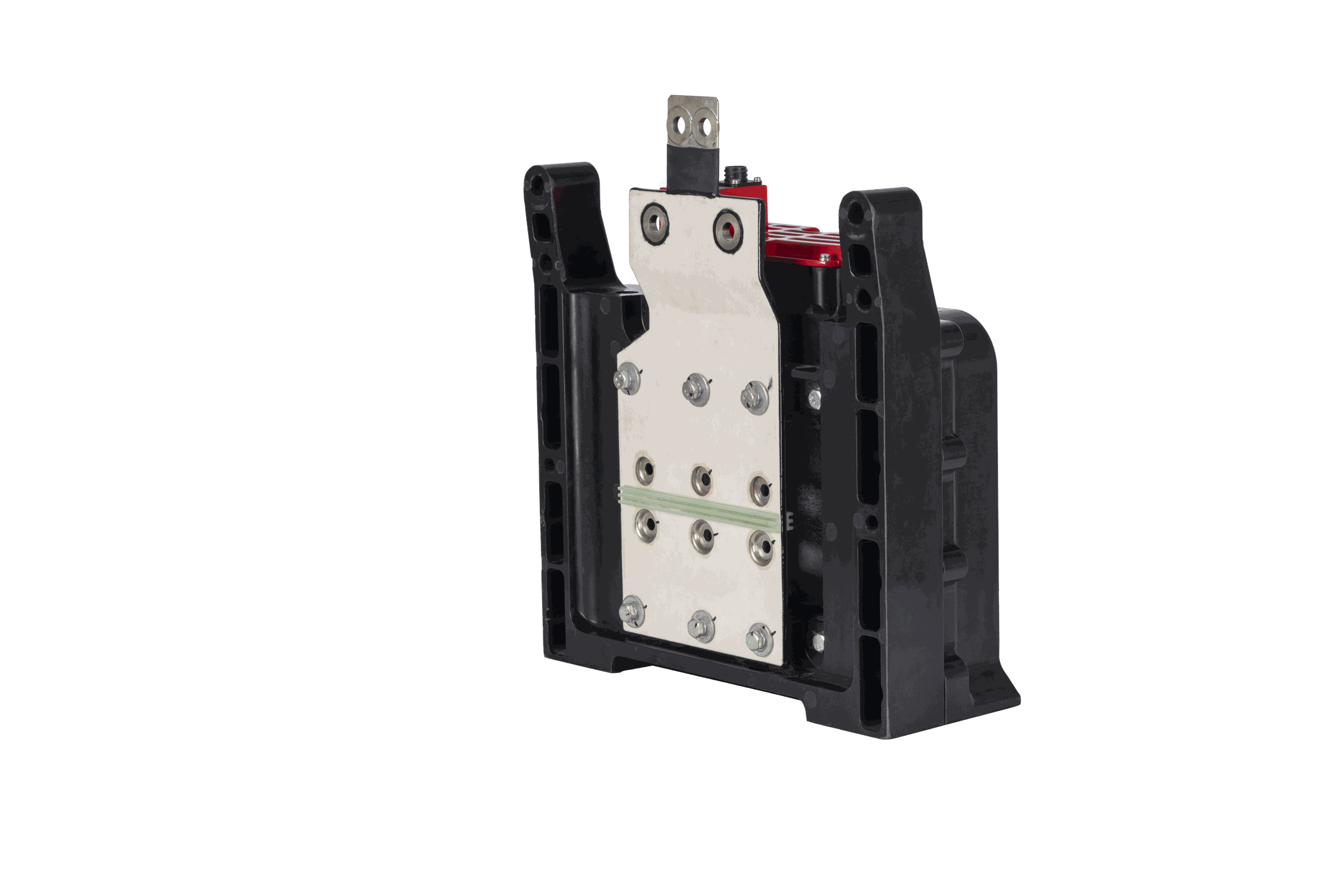

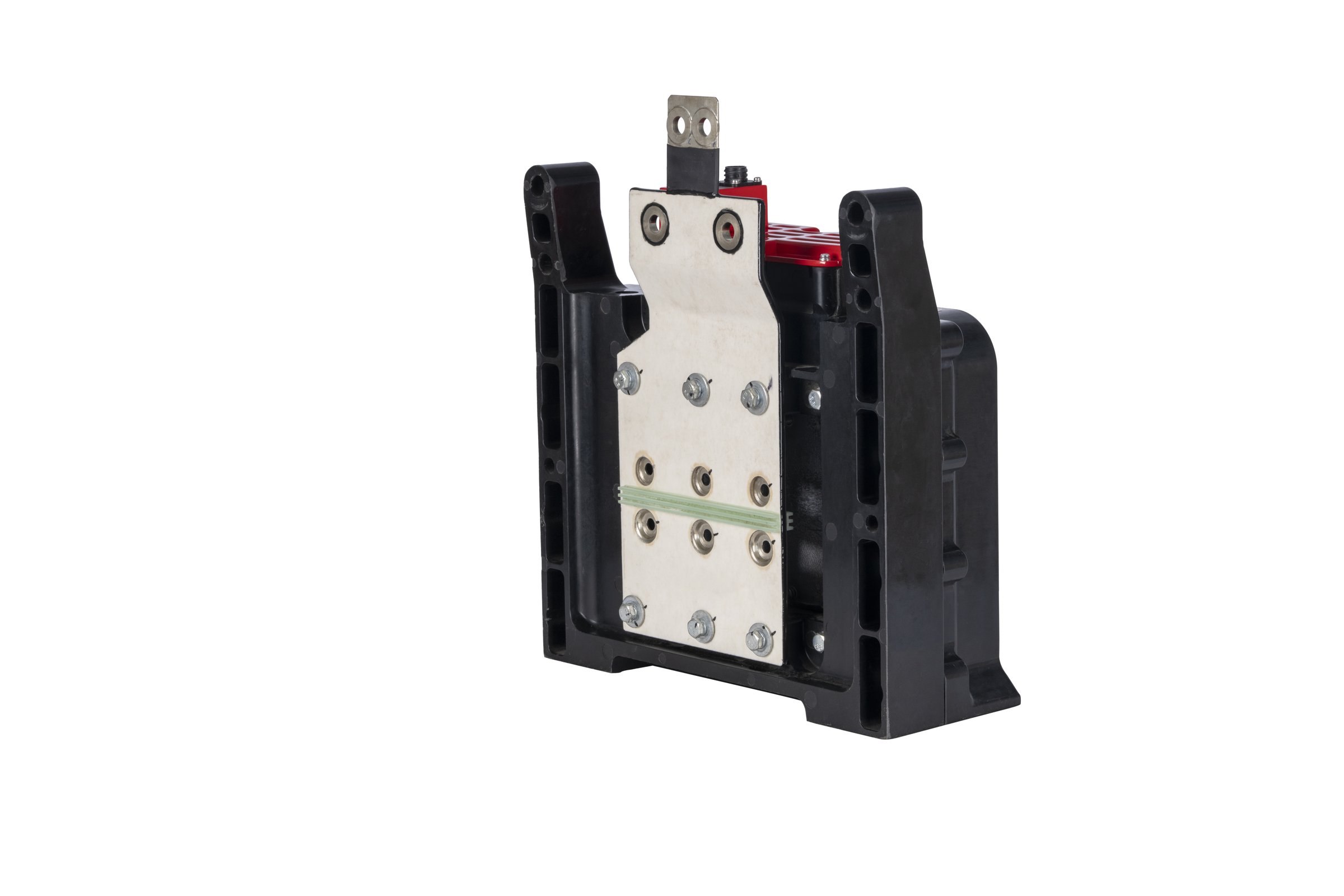

Complete IGBT Module +Ve

Converter Card

Converter Gate Driver

Diode

Diode Assembly

Diode Module

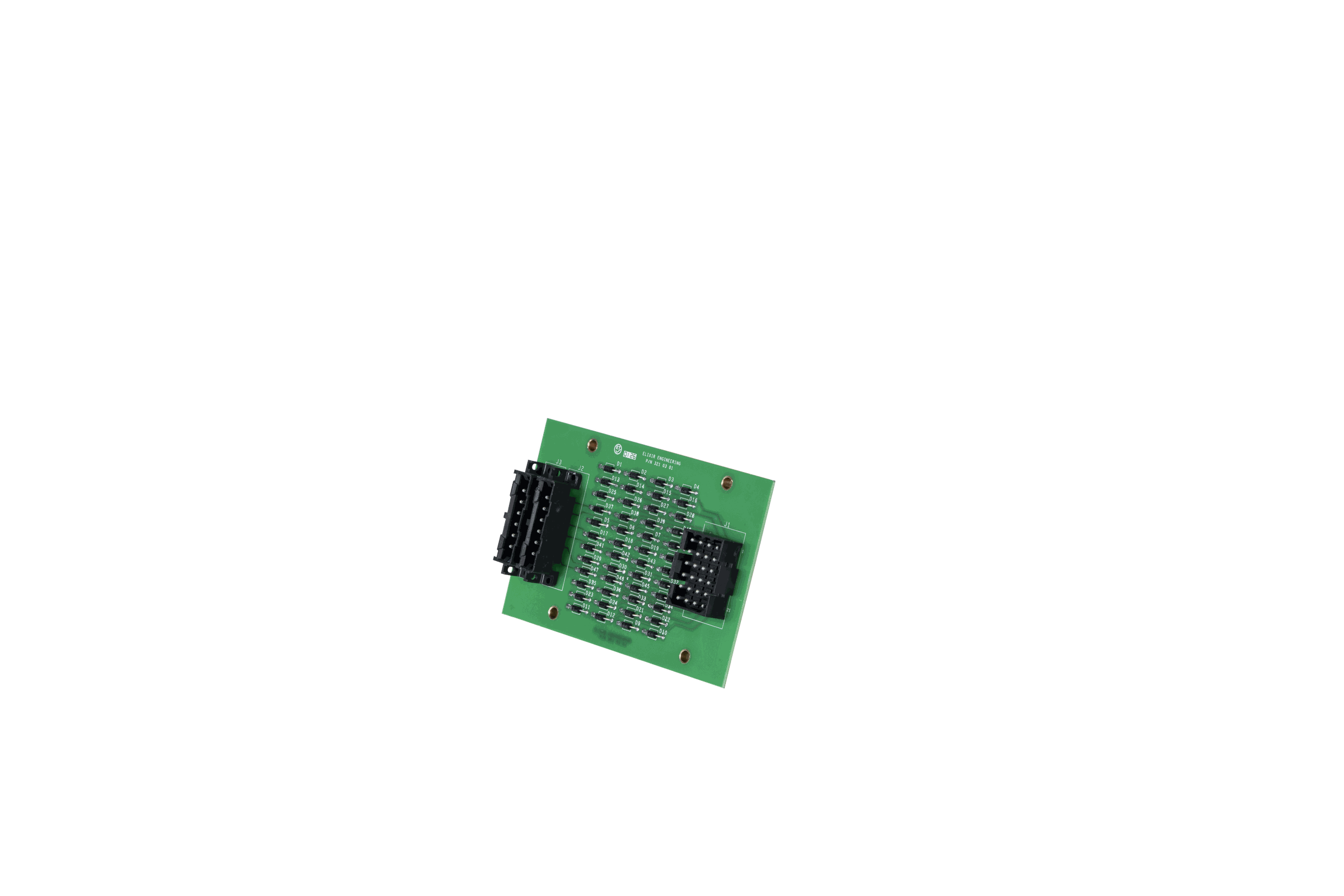

DIP Card 30, 31 , 32

EBP Pulse Card

Frequency-to-Voltage (F-V) card

Gate Driver / Inverter Interface Card

GE Board

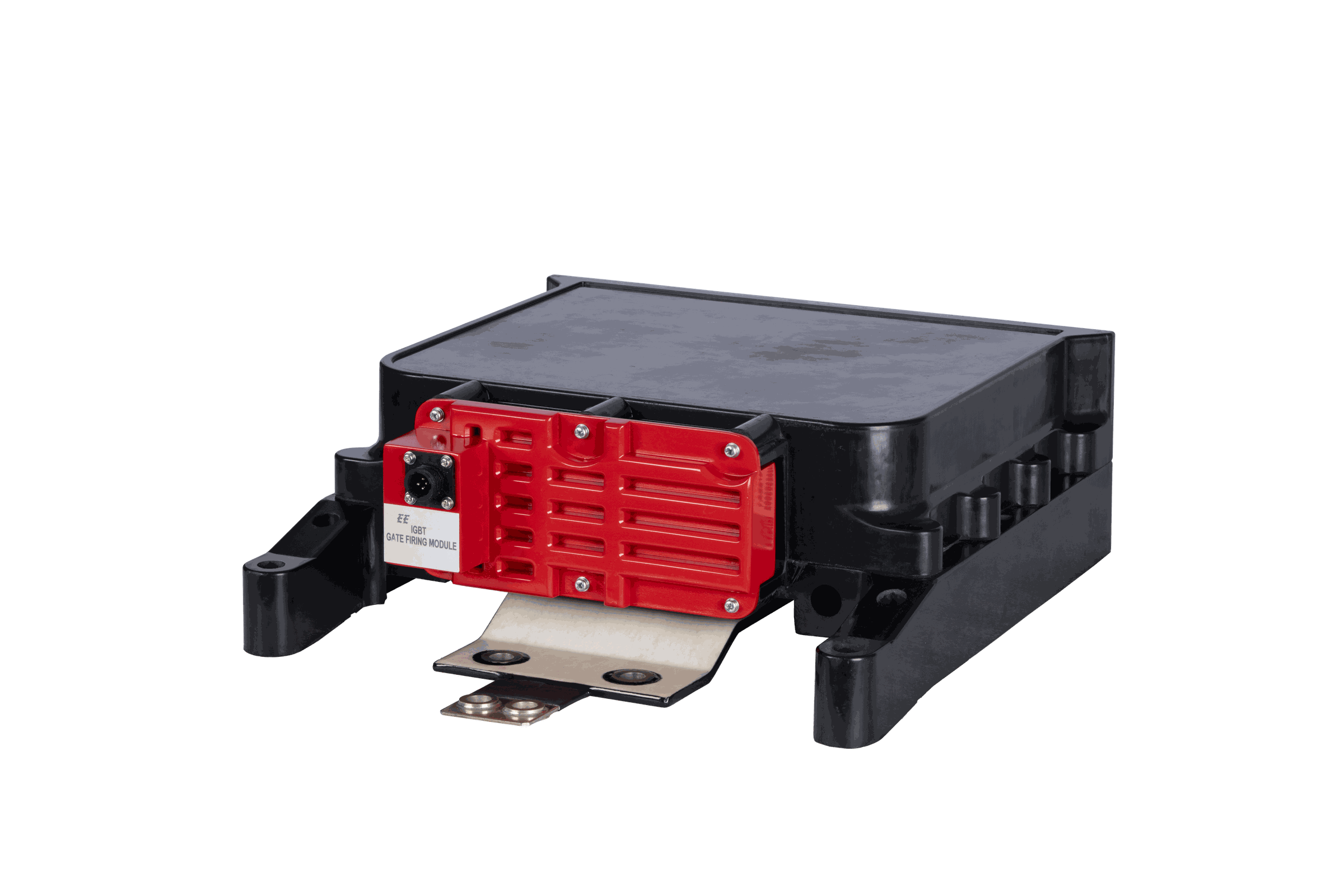

IGBT Based TCC Inverter Interface Module
